Pagină de start>Componente electronice active>Tranzistoare>Tranzistoare bipolare>MJL3281AG, SI-N, 260V, 15A, 200W, ON Semiconductor

Mareste

MJL3281AG, SI-N, 260V, 15A, 200W, ON Semiconductor

Denumire Produs: MJL3281AG, MOTOROLA

COD: 50426

Preț orientativ: 35,07 RON

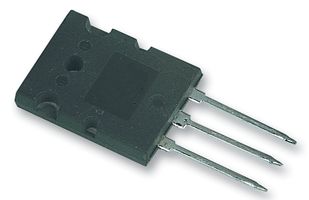

ON SEMICONDUCTOR, MJL3281AG , TRANSISTOR, NPN, TO-264

  •   TRANSISTOR, NPN, TO-264
  • Transistor Polarity: NPN
  • Collector Emitter Voltage V(br)ceo: 260V
  • Power Dissipation Pd: 200W
  • DC Collector Current: 15A
  • DC Current Gain hFE: 175
  • Transistor Case Style: TO-264
  • No. of Pins: 3
  • Av Current Ic: 15A
  • Collector Emitter Voltage Vces: 3V
  • Continuous Collector Current Ic Max: 15A
  • Current Ic Continuous a Max: 15A
  • Current Ic hFE: 5A
  • Device Marking: MJL3281A
  • Full Power Rating Temperature: 25°C
  • Gain Bandwidth ft Min: 30MHz
  • Gain Bandwidth ft Typ: 30MHz
  • Hfe Min: 75
  • No. of Transistors: 1
  • Package / Case: TO-264
  • Power Dissipation Ptot Max: 200W
  • Pulsed Current Icm: 25A
  • Termination Type: Through Hole
  • Voltage Vcbo: 260V



ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala a produselor. Acest lucru nu schimba caracteristicile lor de baza.
