Pagină de start>Componente electronice active>Tranzistoare>Tranzistoare bipolare>MJL1302AG, SI-P, 230V, 15A, 200W, ON SEMICONDUCTOR

Mareste

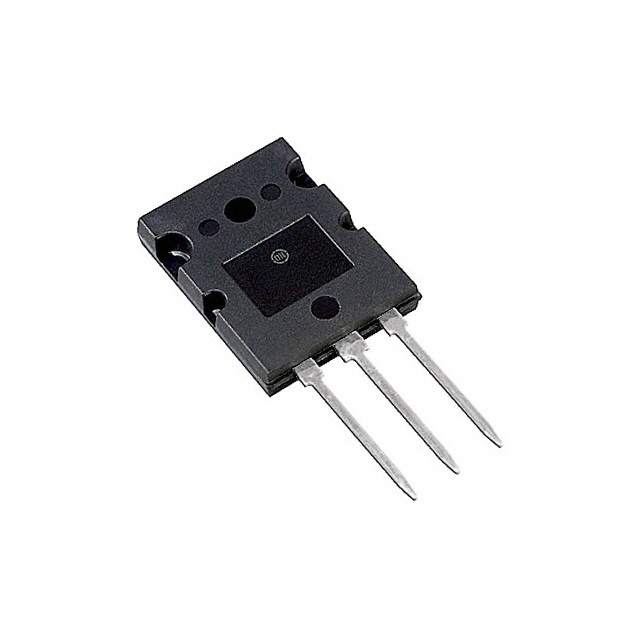

MJL1302AG, SI-P, 230V, 15A, 200W, ON SEMICONDUCTOR

Denumire Produs: MJL1302AG, ON SEMICONDUCTOR

COD: 50425

Preț orientativ: 42,56 RON

Manufacturer: ON Semiconductor
Product Category: Transistors Bipolar - BJT
RoHS: RoHS Compliant Details
Configuration: Single
Transistor Polarity: PNP
Collector- Base Voltage VCBO: 230 V
Collector- Emitter Voltage VCEO Max: 200 V
Emitter- Base Voltage VEBO: 7 V
Collector-Emitter Saturation Voltage: 3 V
Maximum DC Collector Current: 15 A
Gain Bandwidth Product fT: 30 MHz
Maximum Operating Temperature: + 150 C
Mounting Style: Through Hole
Package / Case: TO-264-3 (TO-3BPL)
Brand: ON Semiconductor
Continuous Collector Current: 15 A
DC Collector/Base Gain hfe Min: 60
Maximum Power Dissipation: 200 W
Minimum Operating Temperature: - 65 C
Product Category: Transistors Bipolar- Audio


ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala a produselor. Acest lucru nu schimba caracteristicile lor de baza.
