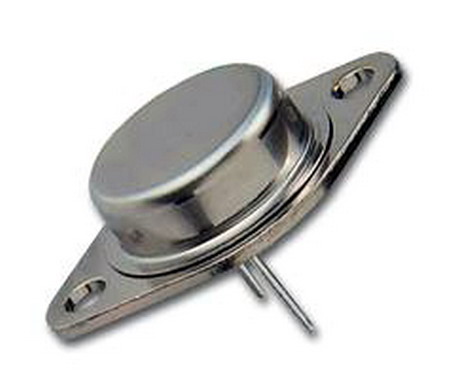

MJ21194G, SI-N, 250V, 16A, 250W, ON SEMICONDUCTOR

Denumire Produs: MJ21194G, ON SEMICONDUCTOR

COD: 56297

Preț orientativ: 72,59 RON

MJ21194G Tranzistor: NPN; bipolar; 250V; 16A; 250W; TO3
Producator: ON SEMICONDUCTOR

    TRANSISTOR, NPN, TO-3
    Transistor Polarity: NPN
    Collector Emitter Voltage V(br)ceo: 250V
    Transition Frequency ft: 4MHz
    Power Dissipation Pd: 250W
    DC Collector Current: 16A
    DC Current Gain hFE: 75
    Transistor Case Style: TO-3
    No. of Pins: 2
    Operating Temperature Max: 200°C

    Alternate Case Style: TO-204AA
    Av Current Ic: 16A
    Collector Emitter Saturation Voltage Vce(on): 1.4V
    Continuous Collector Current Ic Max: 16A
    Current Ic Continuous a Max: 16A
    Current Ic hFE: 8A
    Device Marking: MJ21194
    Full Power Rating Temperature: 25°C
    Gain Bandwidth ft Min: 4MHz
    Gain Bandwidth ft Typ: 4MHz
    Hfe Min: 25
    No. of Transistors: 1
    Operating Temperature Min: -65°C
    Operating Temperature Range: -65°C to +200°C
    Power Dissipation Ptot Max: 250W
    Pulsed Current Icm: 30A
    Voltage Vcbo: 400V

ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala a produselor. Acest lucru nu schimba caracteristicile lor de baza.
