MJ15016G SI-P, 120V, 15A, ON SEMICONDUCTOR

Furnizor:  ON SEMICONDUCTOR

MJ15016G

RoHS :  Da
Descriere

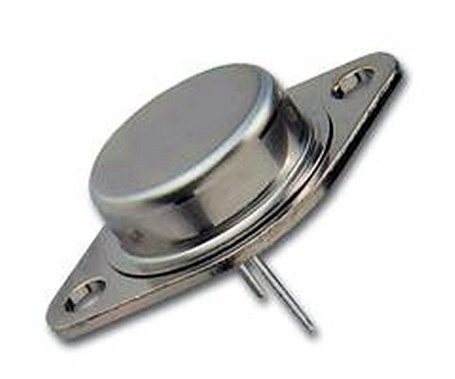

TRANSISTOR, PNP, TO-3
Transistor Polarity:PNP
Collector Emitter Voltage V(br)ceo:120V
Gain Bandwidth ft Typ:18MHz
Power Dissipation Pd:180mW
DC Collector Current:15A
DC Current Gain hFE:70
Transistor Case Style:TO-3
No. of Pins:2
Alternate Case Style:TO-204AA
Collector Emitter Voltage Vces:-1.1V
Continuous Collector Current Ic Max:15A
Current Ic Continuous a Max:15A
Current Ic hFE:4A
Device Marking:MJ15016G
Full Power Rating Temperature:25C
Gain Bandwidth ft Min:2.2MHz
Hfe Min:20
No. of Transistors:1
Package / Case:TO-3
Power Dissipation:180W
Power Dissipation Ptot Max:180W
Termination Type:Through Hole
Transistor Type:Bipolar
