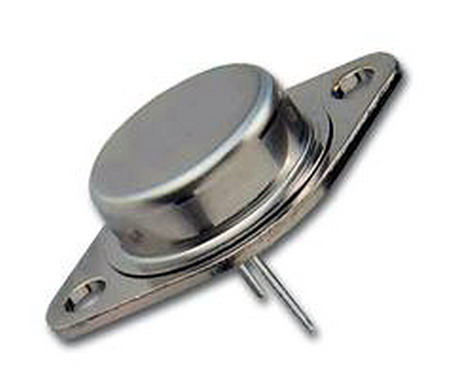

MJ15004G - TRANSISTOR, PNP, TO-3
- TRANSISTOR, PNP, TO-3
- Transistor Polarity: PNP
- Collector Emitter Voltage V(br)ceo: 140V
- Transition Frequency Typ ft: 2MHz
- Power Dissipation Pd: 250W
- DC Collector Current: 20A
- DC Current Gain hFE: 150
- Transistor Case Style: TO-3
- No. of Pins: 2
- Alternate Case Style: TO-204AA
- Collector Emitter Voltage Vces: -1V
- Continuous Collector Current Ic Max: 20A
- Current Ic Continuous a Max: 20A
- Current Ic hFE: 5A
- Full Power Rating Temperature: 25°C
- Gain Bandwidth ft Min: 2MHz
- Gain Bandwidth ft Typ: 2MHz
- Hfe Min: 25
- No. of Transistors: 1
- Package / Case: TO-3
- Power Dissipation Pd: 250W
- Power Dissipation Ptot Max: 250W
- Termination Type: Through Hole
- Voltage Vcbo: 140V
