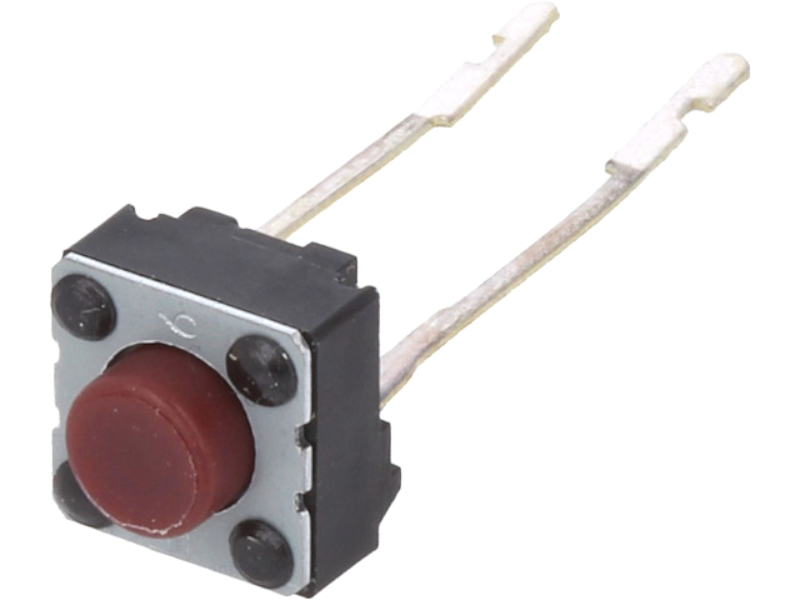

Comutatoare, întrerupătoare, basculanteButoane Push, TactileMicrotach monostabil, 6x6mm, TL59AF100Q, E-SWITCH
Comutatoare, întrerupătoare, basculanteButoane Push, TactileMicrotach monostabil, 6x6mm, TL59AF100Q, E-SWITCH
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 12VDC
Actuator TypeStandard
Mounting Type Through Hole
Actuator Height off PCB, Vertical 5.00mm
Actuator Length, Right Angle-
Actuator Orientation Top Actuated
Termination Style PC Pin
Outline 6.20mm x 6.20mm
Illumination Non-Illuminated
Operating Force 100gf
Ingress Protection-
Features-
Operating Temperature -20°C ~ 70°C
Actuator MaterialPolybutylene Terephthalate (PBT)
Switch Travel 0.25mm
Mechanical Life 100,000 Cycles
