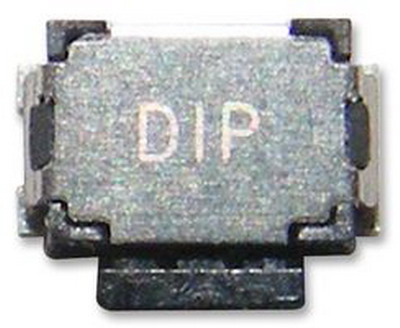

Comutatoare, întrerupătoare, basculanteButoane Push, TactileMicroswitch smd, push, orizontal, 2.8x3.8mm, MCIPTG14K-V
Furnizor: MULTICOMP
MCIPTG14K-V
RoHS : Da
Descriere
SWITCH, 2.8X3.8MM HORIZONTAL PUSH
Contact Configuration:SPST
Switch Terminals:Surface Mount
Contact Current Max:50mA
Contact Voltage DC Nom:12V
Switch Operation:Off-(On)
Operating Force:2.16N
External Height:1.42mm
External Width:4.34mm
External Depth:3.55mm
Contact Configuration:SPST
Contact Current DC Max:50mA
Contact Material:Stainless Steel
Contact Plating:Silver
Contact Resistance:100mohm
Contact Voltage DC Max:12V
Current Rating:50mA
Dielectric Strength VAC:100VAC
External Length / Height:1.42mm
IP/NEMA Rating:IP 40
Insulation Resistance:100Mohm
Insulation Resistance Voltage:100VDC
No. of Electrical Operations:100000
Operating Force Max:220gf
Operating Temperature Max:80C
Operating Temperature Min:-30C
Series:Side Push
Switch Operation:(ON)
Terminal Type:Surface Mount
Termination Type:SMD
Travel:0.25mm
Voltage Rating VDC:12VDC
