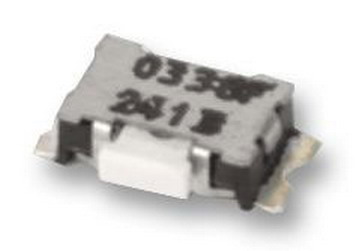

Comutatoare, întrerupătoare, basculanteButoane Push, TactilePush buton, tach, smd, 4.4x7mm, KSS231G LFS
Furnizor:
C & K COMPONENTS
KSS231G LFS
RoHS : Da
Descriere
TACTILE SWITCH, SPST, SMD, 2.5N
Contact Configuration:SPST-NO
Operating Force:2.5N
Contact Voltage DC Nom:32V
Contact Current Max:50mA
Actuation Type:Side
Switch Terminals:Surface Mount
Actuator / Cap Colour:White
Contact Configuration:SPST-NO
Contact Current DC Max:50mA
Contact Current Min:1mA
Contact Material:Silver
Contact Resistance:100mohm
Contact Voltage DC Max:32V
DC Power:1VA
Dielectric Strength VDC:250VDC
External Depth:4.4mm
External Length / Height:1.6mm
External Width:7mm
Insulation Resistance:1000Mohm
No. of Mechanical Operations:100000
Operating Temperature Max:85C
Operating Temperature Min:-40C
Series:KSS
Switch Operation:Momentary
Terminal Type:SMD
Travel:0.3mm
