Comutatoare, întrerupătoare, basculanteButoane Push, TactilePush buton, tach, smd, 3.5x4.6mm, SPTS, KMS221G-LFS, C & K COMPONENTS
Furnizor: C & K COMPONENTS
KMS221G LFS
RoHS : Da
Descriere

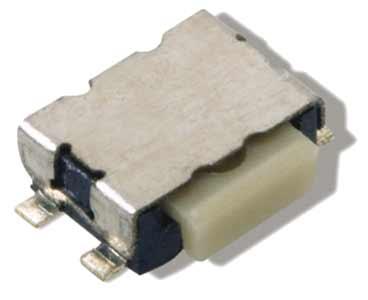

TACTILE SWITCH, SMD, 2N
Contact Configuration:SPST-NO
Operating Force:2N
Contact Voltage DC Nom:32V
Contact Current Max:50mA
Actuation Type:Side
Switch Terminals:Surface Mount
Actuator Type:Plunger
Contact Configuration:SPST-NO
Contact Current DC Max:50mA
Contact Current Min:1mA
Contact Material:Silver
Contact Resistance:100mohm
Contact Type:Momentary
Contact Voltage DC Max:32V
DC Power:1VA
Dielectric Strength VDC:250VDC
External Depth:3.5mm
External Length / Height:1.42mm
External Width:4.6mm
Insulation Resistance:1000Mohm
No. of Mechanical Operations:100000
Operating Temperature Max:85C
Operating Temperature Min:-40C
Series:KMS
Switch Operation:Momentary
Terminal Type:SMD
Termination Type:SMD
