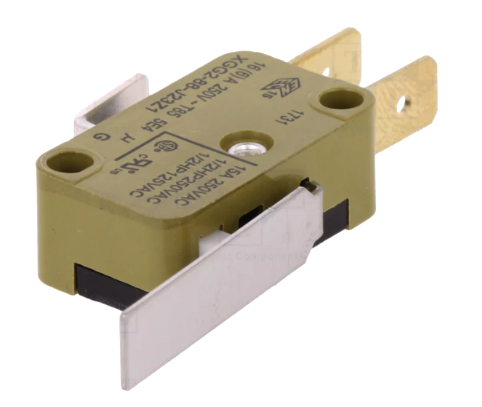

Comutatoare, întrerupătoare, basculanteMicrointrerupatoare cu rola, cu lamelaMicrointrerupator rola, 16A, 250VAC, XGG2-88-J23Z1, SAIA BURGESS
Producator: BURGESS
Contact Configuration: SPST-CO
Microswitch Type: Snap Action
Actuator Style: Lever
Switch Operation: Off-On
Operating Force Max: 1.4N
Contact Voltage AC Nom: 250V
Contact Current Max: 26A
Switch Terminals: Quick Connect
Actuation Type: Lever
Actuator Type: Lever
Approval Bodies: CSA / cUL / ENEC / UL
Contact Configuration: SPST-CO
Contact Current : Contact Voltage AC Max: 26A
Contact Current AC: 16A
Contact Current AC Max: 16A
Contact Current Max: 26A
Contact Material: Silver / Silver Nickel
Contact Voltage AC Max: 250V
Contact Voltage AC Nom: 250V
External Depth: 10.3mm
External Length / Height: 15.9mm
External Width: 27.8mm
Fixing Centres LxW: 22.2mm
IP / NEMA Rating: IP40
No. of Mechanical Operations: 10000000
Operating Force: 1.4N
Operating Temperature Max:
Operating Temperature Min:
Pre-travel: 1.4mm
Series: XG
Switch Case: Plastic
Switch Operation: Off-On
Terminal Type: Quick Connect
