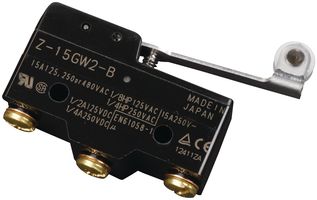

Microintrerupator cu rola, SPDT, Z-15GW2-B, OMRON

Denumire Produs: Microintrerupator cu rola, SPDT, Z-15GW2-B, OMRON

COD: 97347

Preț: 158,00 RON

(Prețul include TVA)

Stoc Limitat

Adaugati la lista de favorite

Cantitate:

Descriere
Data Sheet
Recenzii
Etichete
Trimiteti unui prieten
Am găsit o greşeală

OMRON INDUSTRIAL AUTOMATION - Z-15GW2B - MICROSWITCH, Z, ROLLER LEVER

Contact Configuration: SPDT
Microswitch Type: Snap Action
Actuator Style: Roller Lever
Switch Operation: (Not Applicable)
Operating Force Max: 100gf
Contact Voltage AC Nom: 250V
Contact Voltage DC Nom: 250V
Contact Current Max: 15A
Switch Terminals: Quick Connect, Solder
Actuation Type: Roller Lever
Actuator Type: Roller Lever
Contact Current AC: 15A
Contact Current AC Max: 15A
Contact Current DC Max: 15A
Contact Voltage AC Max: 240V
Contact Voltage DC Max: 250V
Differential Travel Max: 1.02mm
External Depth: 49.2mm
External Length / Height: 21.4mm
External Width: 17.5mm
Fixing Centres LxW: 25mm
Lever Length: 48.5mm
No. of Electrical Operations: 700000
No. of Mechanical Operations: 10000000
Operating Force: 0.98N
Operating Temperature Max: 80°C
Operating Temperature Min: -25°C
Over Travel Min: 4mm
Pre-travel: 7.1mm
Release Force: 42gf

ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala a produselor. Acest lucru nu schimba caracteristicile lor de baza.
