Furnizor: OMRON ELECTRONIC COMPONENTS

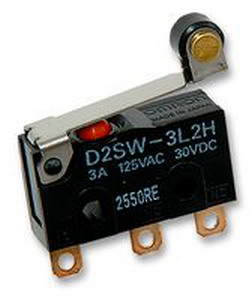

D2SW-3L2H

RoHS :  Da
Descriere
MICROSWITCH, V4, ROLLER LEVER
Contact Configuration:SPDT
Microswitch Type:Snap Action
Operating Force Max:0.59N
Contact Voltage AC Nom:250V
Contact Voltage DC Nom:30V
Contact Current Max:3A
Switch Terminals:Solder
Actuation Type:Roller Lever
Actuator Type:Hinge Roller Lever
Approval Bodies:UL, CSA, VDE, EN61058-1
Contact Configuration:SPDT
Contact Current AC:2A
Contact Current AC Max:3A
Contact Current DC Max:3A
Contact Voltage AC Max:250V
Contact Voltage DC Max:30V
Differential Travel Max:0.8mm
External Depth:19.8mm
External Length / Height:10.6mm
External Width:6.4mm
Fixing Centres LxW:9.5mm
IP/NEMA Rating:50
Insulation Resistance:100Mohm
Insulation Resistance Voltage:500V
Lever Length:14.5mm
No. of Electrical Operations:200000
Operating Force:0.59N
Operating Temperature Max:85C
Operating Temperature Min:-40C
Over Travel Min:1mm
Pre-travel:4.8mm
Release Force:6gf
Series:D2SW
Switch Operation:
Terminal Type:Solder
