MCP4017T-502ELT Circ. integr. Reostat Digital 7-biti I2C RAM 5k SC70-6 RoHS
Producator: MICROCHIP Simbol original: MCP4017T-502E/LT
Producător MICROCHIP TECHNOLOGY
Tip circuit integrat rheostat
Rezistenţă 5kΩ
Interfaţă I2C
Rezoluţie adaptor 7bit

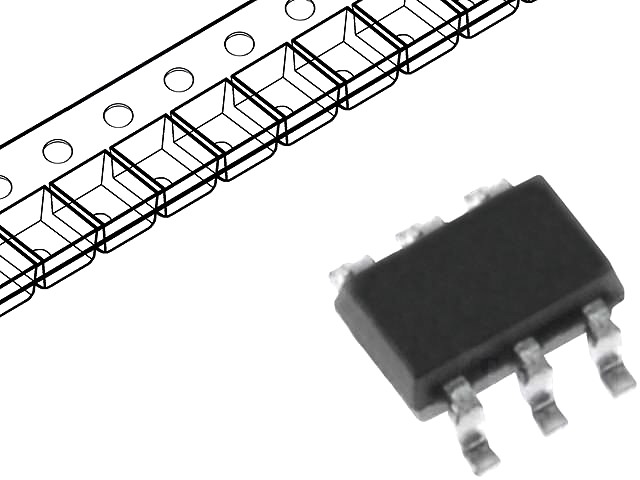

Carcasă SC70-6
Montare SMD
Subtip memorie volatilă
Temperatura de lucru -40...125°C
Număr canale 1
Numărul tuturor poziţiilor 128
Max INL ±0.5LSB
Max DNL ±0.25LSB
Tensiune alimentare 1.8...5.5V
