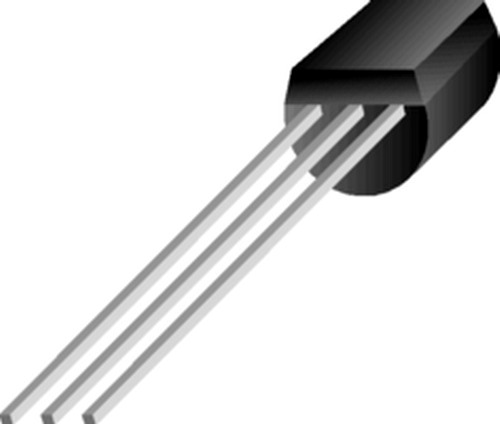

MC78L18ACPG, Linear Voltage Regulator, 7818, TO92, ON SEMICONDUCTOR

Descriere
Recenzii
Etichete
Trimiteti unui prieten
Am găsit o greşeală

MC78L18ACPG, Linear Voltage Regulator, 7818, Fixed, 27V To 35V In, 18V And 0.1A Out, TO-92-3

Fixed output voltage of 18V

Dropout voltage of 1.7VDC at TJ = +25°C

Maximum input voltage of 35V

Line regulation of 45mV (20.7VDC <= VI <= 33VDC, TJ = +25°C, IO = 40mA)

Load regulation of 30mV (TJ = +25°C, 1mA <= IO <= 100mA)

Input bias current of 3.1mA (TJ = +25°C)

Output noise voltage of 150µV at TA = +25°C, 10Hz <= f <= 100KHz)

Ripple rejection of 48dB (IO =40mA, f = 120 Hz, 23V <= VI <= 33V, TJ = +25°C)

Operating temperature range from 0° to +125°C

ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala a produselor. Acest lucru nu schimba caracteristicile lor de baza.
