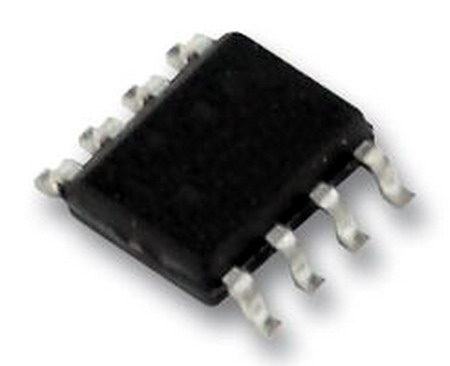

MC4558CD, Integrated circuit, dual op-amplifier, LP SO8

Denumire Produs: MC4558CDT

COD: 31769

Preț orientativ: 8,66 RON

MC4558CD Integrated circuit, dual op-amplifier LP SO8
Producator: ST MICROELECTRONICS

Manufacturer: STMicroelectronics
Product Category: Operational Amplifiers - Op Amps
RoHS:  Details
Mounting Style: SMD/SMT
Package/Case: SO-8
Output Current per Channel: 20 mA
Number of Channels: 2 Channel
GBP - Gain Bandwidth Product: 5.5 MHz
SR - Slew Rate: 2.2 V/us
CMRR - Common Mode Rejection Ratio: 70 dB
Ib - Input Bias Current: 400 nA
Vos - Input Offset Voltage: 5 mV
Operating Supply Current: 4.5 mA
Minimum Operating Temperature: 0 C
Maximum Operating Temperature: + 70 C
Shutdown: No Shutdown
Series: MC4558
Packaging: Cut Tape
Packaging: Reel
Amplifier Type: General Purpose Amplifier
Height: 1.65 mm (Max)
Length: 5 mm (Max)
Product: Operational Amplifiers
Supply Type: Dual
Technology: Bipolar
Width: 4 mm (Max)
Brand: STMicroelectronics
Dual Supply Voltage: +/- 3 V, +/- 5 V, +/- 9 V
en - Input Voltage Noise Density: 12 nV/sqrt Hz
Maximum Dual Supply Voltage: 20 V
Minimum Dual Supply Voltage: 2 V
Operating Supply Voltage: 2 V to 20 V
Pd - Power Dissipation: 680 mW


ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala a produselor. Acest lucru nu schimba caracteristicile lor de baza.
