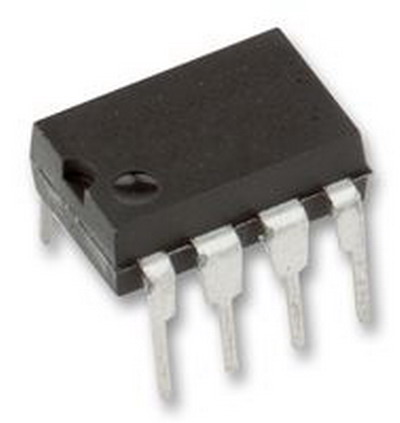

MC1458P, OPERATIONAL, AMPLIFIERS, DIP8

Denumire Produs: MC1458P

COD: 13777

Preț orientativ: 7,31 RON

MC1458 - DUAL GENERAL-PURPOSE OPERATIONAL AMPLIFIERS  DIP8

Product Category: Operational Amplifiers - Op Amps
Manufacturer: Texas Instruments
RoHS: RoHS Compliant Details
Mounting Style: Through Hole
Package/Case: PDIP-8
Supply Voltage - Max: 30 V
Output Current per Channel: 25 mA
Number of Channels: 2 Channel
GBP - Gain Bandwidth Product: 1 MHz
SR - Slew Rate: 0.5 V/us
CMRR - Common Mode Rejection Ratio: 90 dB
Ib - Input Bias Current: 500 nA
Vos - Input Offset Voltage: 6 mV
Supply Voltage - Min: 10 V
Operating Supply Current: 1.5 mA
Maximum Operating Temperature: + 70 C
Minimum Operating Temperature: 0 C
Shutdown: No Shutdown
Series: MC1458
Packaging: Tube
Amplifier Type: General Purpose Amplifier
Brand: Texas Instruments
Dual Supply Voltage: +/- 9 V, +/- 12 V
en - Input Voltage Noise Density: 45 nV/sqrt Hz
Height: 4.57 mm
Length: 9.81 mm
Maximum Dual Supply Voltage: +/- 15 V
Minimum Dual Supply Voltage: +/- 5 V
Operating Supply Voltage: 10 V to 30 V, +/- 5 V to +/- 15 V
Product: Operational Amplifiers

Inlocuire pentru: AN1358, AN145B, AN6555, AN6559, AN6562, AN6572, HA17458, HA17558, LA3110, LA6458, LF412, LM1458, MC1458P, MC34082P, NE4558N, TA75458, TA75558, TBB1458B, UPC1458, UPC4558, UPC4558CP
