Pagină de start>Componente electronice active>Circuite integrate>Circuite integrate logice. circuite digitale>MAX4467EKA, Microphone Preamplifier, AUDIO, MAXIM INTEGRATED

Mareste

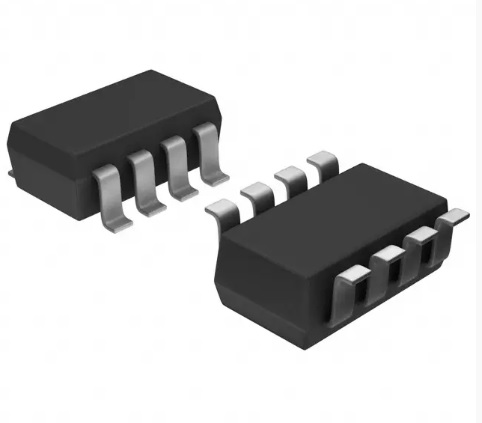

MAX4467EKA, Microphone Preamplifier, AUDIO, MAXIM INTEGRATED

Denumire Produs: MAX4467EKA, MAXIM INTEGRATED

Preț orientativ: 14,21 RON

MAX4467EKA+T, Audio Power Amplifier, 1 Channel, 2.4V to 5.5V, SOT-23, 8 Pins

Manufacturer: Maxim Integrated
Product Category: Microphone Preamplifiers
RoHS:  Details
Series: MAX4467
Amplifier Type: General Purpose Microphone Preamplifier
Number of Channels: 1 Channel
Ib - Input Bias Current: 0.1 uA
Vos - Input Offset Voltage: 5 mV
CMRR - Common Mode Rejection Ratio: 80 dB
Supply Voltage - Max: 5.5 V
Supply Voltage - Min: 2.4 V
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 85 C
Mounting Style: SMD/SMT
Package/Case: SOT-23-8
Packaging: Reel
Height: 1.1 mm
Length: 2.9 mm
Product: Microphone Preamplifiers
Supply Type: Single
Width: 1.63 mm
Brand: Maxim Integrated
Shutdown: Shutdown
Class: Class-AB
GBP - Gain Bandwidth Product: 0.2 MHz
Operating Supply Voltage: 3 V, 5 V
Pd - Power Dissipation: 421 mW
Product Type: Microphone Preamplifiers
PSRR - Power Supply Rejection Ratio: 112 dB
Factory Pack Quantity: 2500
Subcategory: Audio ICs
Part # Aliases: MAX4467


ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala a produselor. Acest lucru nu schimba caracteristicile lor de baza.
