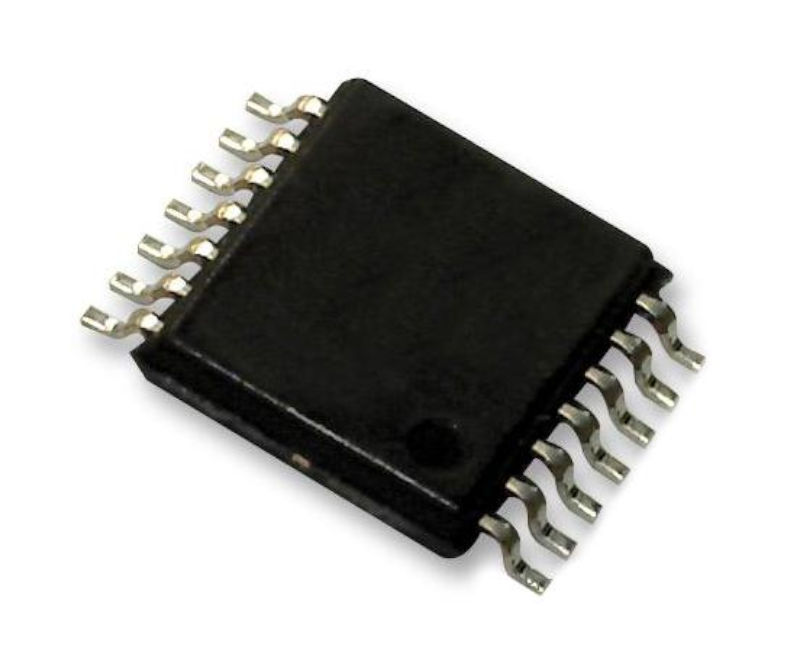

Componente electronice activeCircuite integrateCircuite integrate analogice, comparatoare, drivereLMV324D, amplificator operational, 1MHz, 2.5-5.5V, TSSOP14, ON SEMICONDUCTOR
Componente electronice activeCircuite integrateCircuite integrate analogice, comparatoare, drivereLMV324D, amplificator operational, 1MHz, 2.5-5.5V, TSSOP14, ON SEMICONDUCTOR
Producător : ON SEMICONDUCTOR
Manufacturer: onsemi
Product Category: Operational Amplifiers - Op Amps
RoHS: Details
Mounting Style: SMD/SMT
Package/Case: TSSOP-14
Number of Channels: 4 Channel
Supply Voltage - Max: 5 V
GBP - Gain Bandwidth Product: 1 MHz
Output Current per Channel: 160 mA
SR - Slew Rate: 1 V/us
Vos - Input Offset Voltage: 9 mV
Supply Voltage - Min: 2.5 V
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 85 C
Ib - Input Bias Current: 1 nA
Operating Supply Current: 830 uA
Shutdown: No Shutdown
CMRR - Common Mode Rejection Ratio: 50 dB
en - Input Voltage Noise Density: 50 nV/sqrt Hz
Series: LMV324
Packaging: Reel
Packaging: Cut Tape
Amplifier Type: Low Voltage Amplifier
Brand: onsemi
Height: 1.05 mm
Length: 5.1 mm
Moisture Sensitive: Yes
Operating Supply Voltage: 2.5 V to 5 V
Product: Operational Amplifiers
Product Type: Op Amps - Operational Amplifiers
PSRR - Power Supply Rejection Ratio: 50 dB
