LME49720NA, 2xHiFi, Audio, Op-Amp 55MHz, Texas Instruments

Descriere
Recenzii
Etichete
Trimiteti unui prieten
Am găsit o greşeală

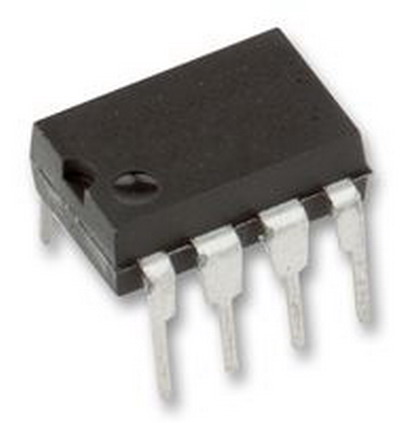

LME49720NA/NOPB Circuit integrat amp. operational HIFI 20V/us 55MHz DIP8 RoHS
Producator: NATIONAL SEMICONDUCTOR

Amplifier Class: AB

No. of Channels: 2 Channel

Output Power:

Supply Voltage Range: ± 2.5V to ± 17V

Amplifier Case Style: DIP

No. of Pins: 8Pins

Load Impedance: 2kohm

Operating Temperature Min: -40°C

Operating Temperature Max: 85°C

Packaging: Each

Product Range:

MSL: MSL 1 - Unlimited

The LME49720NA/NOPB is a dual, high performance, high fidelity audio operational amplifier in 8 pin DIP package. This ultra low distortion, low noise, high slew rate operational amplifier is optimized and fully specified for high performance and high fidelity applications. Combining advanced leading edge process technology with state of the art circuit design, the LME49720 audio operational amplifier deliver superior audio signal amplification for outstanding audio performance. The LME49720 combines extremely low voltage noise density (2.7nV/√Hz) with low THD+N (0.00003%) to easily satisfy most demanding audio applications. This audio operational amplifier is unity gain stable and achieves outstanding AC performance while driving complex loads with values as high as 100pF.

Output current capability of ±26mA

Slew rate of ±20V/µs

Gain bandwidth product of 55MHz

Output short circuit protection

PSRR and CMRR exceeds 120dB

Power supply voltage range from ±2.5V to ±17V

Easily drives 600 ohm loads

Optimized for superior audio signal fidelity

Open loop gain of 140dB at RL = 600 ohm

Operating temperature range from -40°C to 85°C

Aplicaţii Audio, Signal Processing

DATASHEET
