Product Category: Audio Amplifiers
Manufacturer: Texas Instruments
RoHS: RoHS Compliant Details
Series: LME49720
Product: Audio Amplifiers
Mounting Style: SMD/SMT
Type: Dual

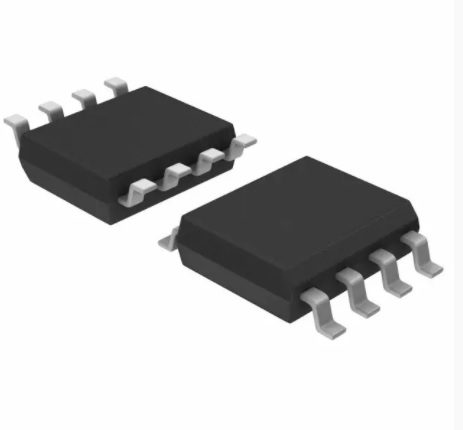

Package/Case: SOIC-8 Narrow
THD plus Noise: 0.00003 %
Supply Voltage - Max: 34 V
Supply Voltage - Min: 5 V
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
Packaging: MouseReel
Packaging: Reel
Packaging: Cut Tape
Brand: Texas Instruments
CMRR - Common Mode Rejection Ratio: 110 dB to 120 dB
Development Kit: LME49720MABD
Dual Supply Voltage: +/- 3 V, +/- 5 V, +/- 9 V, +/- 12 V, +/- 15 V
GBP - Gain Bandwidth Product: 55 MHz
Height: 1.45 mm
Ib - Input Bias Current: 72 nA
Length: 4.9 mm
Maximum Dual Supply Voltage: +/- 17 V
Minimum Dual Supply Voltage: +/- 2.5 V
Number of Channels: 2 Channel
Operating Supply Current: 5 mA
Operating Supply Voltage: 2.5 V to 17 V
Output Current: 26 mA
PSRR - Power Supply Rejection Ratio: 110 dB
SR - Slew Rate: 20 V/us
