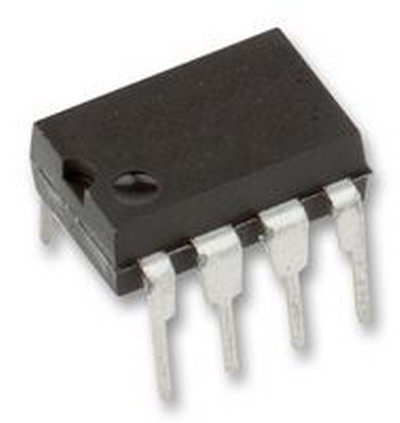

LM4562NA, 2 x HiFi-Op-Amp, 55MHz, high-fidelity applications, DIP, TEXAS INSTRUMENTS

Mareste

LM4562NA, 2 x HiFi-Op-Amp, 55MHz, high-fidelity applications, DIP, TEXAS INSTRUMENTS

Denumire Produs: LM4562NA, TEXAS INSTRUMENTS

COD: 38272

Preț orientativ: 39,48 RON

Descriere
Recenzii
Etichete
Trimiteti unui prieten
Am găsit o greşeală

The LM4562 is part of the ultra-low distortion, low- 2 noise, high-slew-rate operational amplifier series optimized and fully specified for high-performance, high-fidelity applications. The LM4562 audio operational amplifiers deliver superior audio signal amplification for outstanding audio performance. The LM4562 combines extremely low voltage noise density (2.7nV/√Hz) with vanishingly low THD+N APPLICATIONS (0.00003%) to easily satisfy the most demanding audio applications.

Easily drives 600Ω loads

Optimized for superior audio signal fidelity

Output short circuit protection

Ultra low distortion

LM4562NA, Integrated circuit 2xHiFi-Op-Amp 55MHz 20V/us DIP8

Manufacturer: Texas Instruments

Product Category: Audio Amplifiers

RoHS: Details

Series: LM4562

Product: Audio Amplifiers

Mounting Style: Through Hole

Type: 2-Channel Stereo

Package/Case: PDIP-8

Audio - Load Impedance: 13 Ohms

THD plus Noise: 0.00003 %

Supply Voltage - Max: 34 V

Supply Voltage - Min: 5 V

Minimum Operating Temperature: - 40 C

Maximum Operating Temperature: + 85 C

Packaging: Tube

Brand: Texas Instruments

CMRR - Common Mode Rejection Ratio: 110 dB to 120 dB

Development Kit: LM4562MABD/NOPB

Dual Supply Voltage: +/- 3 V, +/- 5 V, +/- 9 V, +/- 12 V, +/- 15 V

Input Voltage Noise Density: 6.4 nV/sqrt Hz at +/- 15 V

GBP - Gain Bandwidth Product: 55 MHz

Height: 3.3 mm

Ib - Input Bias Current: 72 nA

In - Input Noise Current Density: 3.1 pA/sqrt Hz

Length: 9.27 mm

Maximum Dual Supply Voltage: +/- 17 V

Minimum Dual Supply Voltage: +/- 2.5 V

Number of Channels: 2 Channel

Operating Supply Current: 5 mA

Operating Supply Voltage: 5 V to 34 V

Output Current per Channel: 42 mA

Product Type: Audio Amplifiers

PSRR - Power Supply Rejection Ratio: 110 dB

Shutdown: No Shutdown

SR - Slew Rate: 20 V/us 40

Subcategory: Audio ICs

Supply Type: Dual

Vcm - Common Mode Voltage: 5 V to 34 V

Vos - Input Offset Voltage: 700 uV

LM4562NA DATA SHEET
