Componente pentru automatizări și controlIntrerupatoare, limitatori cursa, rola, lamelaLimitator cursa rola transversala AH8112

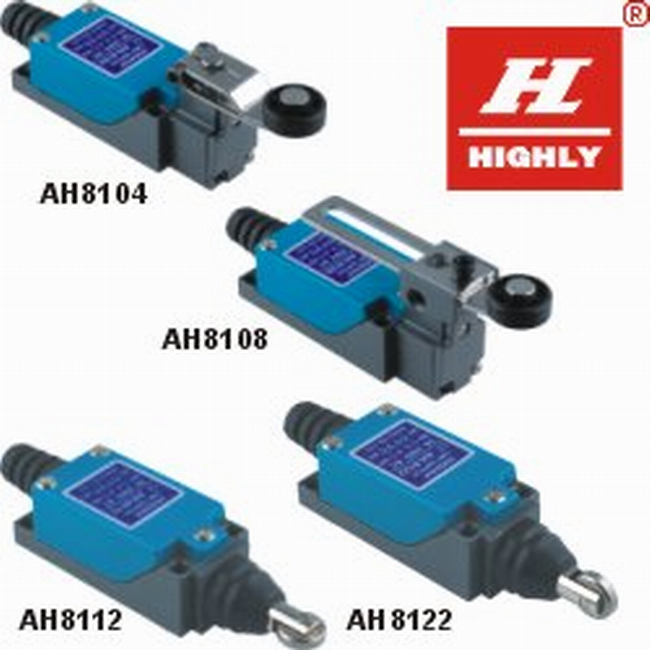

Limit switch with parallel metal roller dia 12,4mm
The AH series miniature limit switches are designed for operation in control and protection circuits.
Suitable for mounting on machine tools, process equipment, lifting and transporting equipment, etc.
The frame of housing is made of aluminium alloy, the cover is made of resistant plastic.
The rotary head can be mounted in one of four available positions (n/a to AH8122).
Four M5 tapped holes in the switch body facilitates mounting .
Fitted with a gland with flexible cable protection.
Contact rating : 5 A 125 VAC or 250 VAC
Contacts : 1 NO + 1 NC
Contact resistance max. : 25 mΩ
Insulation resistance min. : 100 MΩ
Mechanical life : min. 1 000 000 operations
Electrical life : min. 100 000 operations
