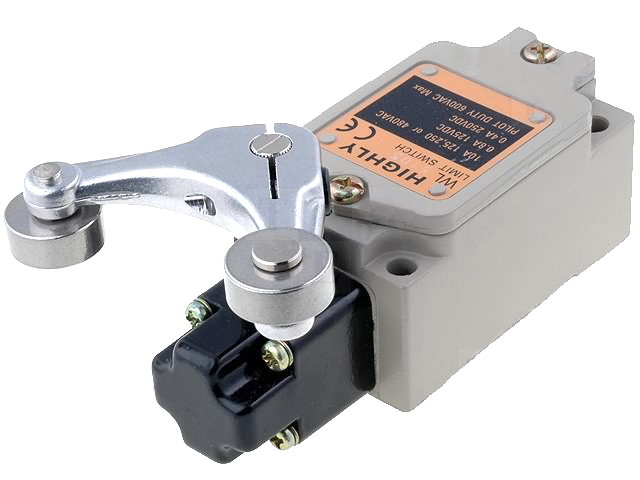

WL-5105 Intrerup.de sfirsit de cursa cu actuator dubla R38 si rola

Tip senzor limitator cursa
Curent de lucru max. 10 A
Tensiune de lucru max. 250 V AC
Configuratie iesire NO + NC
Dimensiuni exterioare 40 x 41,7 x 72 mm

Maneta dubla R 38 mm, role metalice Ø 17,5 mm

RoHS
Producator: HIGHLY Simbol original: WL-5105

Switches are fitted with a gland with flexible screwed in cable protection.
Contact rating : 10 A 125 VAC or 250 VAC
Contacts : 1 NO + 1 NC
Contact resistance max. : 25 mΩ
Insulation resistance min. : 100 MΩ
Mechanical life : min. 1 000 000 operations
Electrical life  : min. 100 000 operations
