Pagină de start>Optoelectronice, LED, LCD, laser>Leduri, SMD, putere, infrarosu, RGB>Led SMD>Led SMD, 0805, rosu, MCL-S270SRC

Mareste

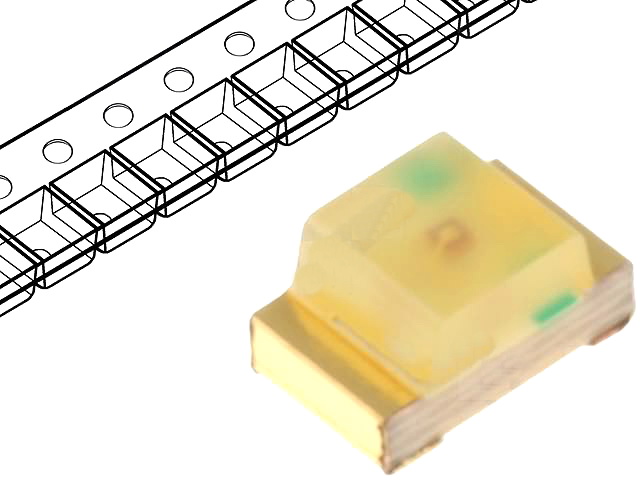

Led SMD, 0805, rosu, MCL-S270SRC

Denumire Produs: MCL-S270SRC

COD: 59020

Preț orientativ: 1,90 RON

Cantitatea minimă pentru "Led SMD, 0805, rosu, MCL-S270SRC" este 2.



MULTICOMP - MCL-S270SRC - LED, SMD, 0805, SUPER-RED



  •   LED, SMD, 0805, SUPER-RED
  • Bulb Size: 1.25mm x 1.4mm
  • LED Colour: Red
  • Luminous Intensity: 17mcd
  • Viewing Angle: 140°
  • Forward Current If: 20mA
  • Forward Voltage: 1.85V
  • LED Mounting: SMD
  • Lens Shape: Rectangular
  • Wavelength Typ: 643nm
  • Current Rating: 20mA
  • Dominant Wavelength: 643nm
  • Dominant Wavelength Typ: 643nm
  • Forward Current If Max: 20mA
  • Forward Voltage VF Max: 2.4V
  • LED / Lamp Size: 1.4mm x 1.25mm
  • LED Type: Standard
  • Luminous Intensity Max: 20mcd
  • Luminous Intensity Min: 14mcd
  • Luminous Intensity Typ: 17mcd
  • Mounting Type: SMD
  • No. of Pins: 2
  • Operating Temperature Range: -40°C to +85°C
  • Opto Case Style: 0805
  • Package / Case: 0805
  • Peak Forward Current: 120mA
  • Peak Wavelength: 660nm
  • Power Dissipation Pd: 100mW
  • Power Dissipation Pd: 100mW
  • Reverse Protection Voltage: 5V
  • Storage Temperature Max: +100°C
  • Storage Temperature Min: -40°C
  • Voltage Vf Min: 1.5V
  • Voltage Vf Typ: 1.85V
ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala a produselor. Acest lucru nu schimba caracteristicile lor de baza.
