Optoelectronice, LED, LCD, laserLeduri, SMD, putere, infrarosu, RGBLed de putere 1W, 3W,5W,100WLed putere, alb cald, 31.3V, 1910lm, BXRC-30E2000-C-23, BRIDGELUX
Optoelectronice, LED, LCD, laserLeduri, SMD, putere, infrarosu, RGBLed de putere 1W, 3W,5W,100WLed putere, alb cald, 31.3V, 1910lm, BXRC-30E2000-C-23, BRIDGELUX
Manufacturer Bridgelux
Manufacturer Part Number BXRC-30E2000-C-23

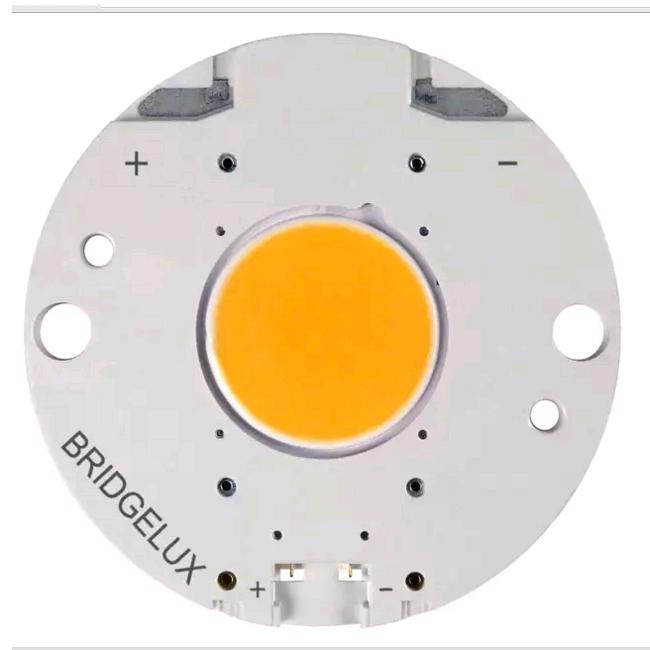

Description LED Lighting COBs, Engines, Modules Chip On Board (COB) Vero® 13 Array White, Warm Round
Type Chip On Board (COB)
Color White, Warm
CCT (K) 3000K 3-Step MacAdam Ellipse
Wavelength -
Configuration Round
Flux @ Current/Temperature - Test 1910 lm (Typ)
Current - Test 500mA
Temperature - Test 85°C
Voltage - Forward (Vf) (Typ) 31.3V
Lumens/Watt @ Current - Test 122 lm/W
Current - Max 1.05A
CRI (Color Rendering Index) 80
Viewing Angle 120°
Features With Connector
Size / Dimension 36.20mm Diameter
Height 1.90mm
Light Emitting Surface (LES) 13.20mm Diameter
Lens Type Flat
