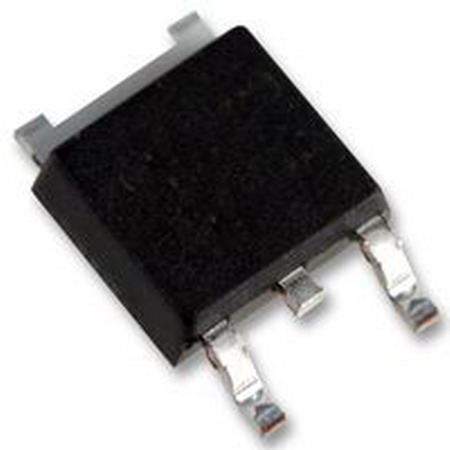

Componente electronice activeCircuite integrateCircuite integrate, surse de tensiune, referinte tensiuneLD1117DT25, Voltage REG LDO, +2.5V, SMD, 1117, DPAK
Furnizor: STMICROELECTRONICS
LD1117DT25TR
RoHS : Da
Descriere
V REG LDO +2.5V, SMD, 1117, DPAK-3
Primary Input Voltage:4.5V
Dropout Voltage Vdo:1.1V
No. of Pins:3
Output Current:800mA
Voltage Regulator Case Style:TO-252
Operating Temperature Range:0C to +125C
SVHC:No SVHC (15-Dec-2010)
Operating Temperature Max:125C
Operating Temperature Min:0C
Package / Case:TO-252 (D-Pak)
Accuracy %:1%
Base Number:1117
IC Generic Number:1117
Input Voltage Max:15V
Input Voltage Min:3.6V
Logic Function Number:1117
No. of Outputs:1
Operating Voltage Tolerance +:2%
Output Current Max:0.8A
Output Voltage:2.5V
Output Voltage Max:2.5V
Supply Voltage Max:15V
Supply Voltage Min:3.9V
Termination Type:SMD
Voltage Regulator Type:Fixed
Voltage:2.5V
