KIT dezvoltare, Raspberry Pi 3 Model A+, Single Board Computer, DUAL BAND WiFi, IoT, RPI3-MODAP, RASPBERRY-PI

Mareste

KIT dezvoltare, Raspberry Pi 3 Model A+, Single Board Computer, DUAL BAND WiFi, IoT, RPI3-MODAP, RASPBERRY-PI

Denumire Produs: RPI3-MODA, RASPBERRY-PI

COD: 81658

Preț orientativ: 262,71 RON

Descriere
Data Sheet
Recenzii
Etichete
Trimiteti unui prieten
Am găsit o greşeală

KIT dezvoltare, Raspberry Pi 3 Model A+, Single Board Computer, WiFi, IoT, RPI3-MODAP, RASPBERRY-PI

Silicon Manufacturer:        Broadcom
Core Architecture:            ARM
Core Sub-Architecture:   Cortex-A53
Silicon Core Number:        BCM2837B0 Module
Kit Contents:           Dev Board BCM2837B0 Module

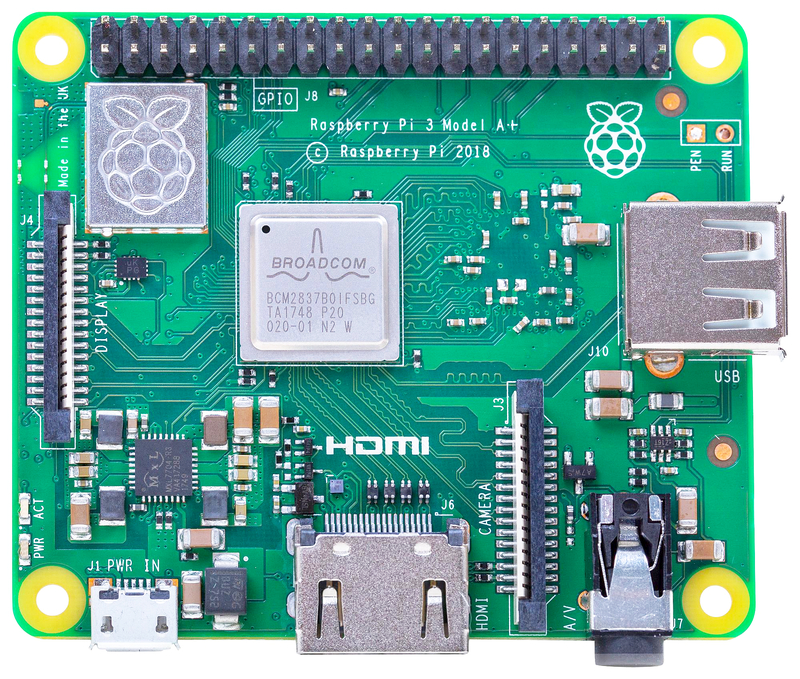

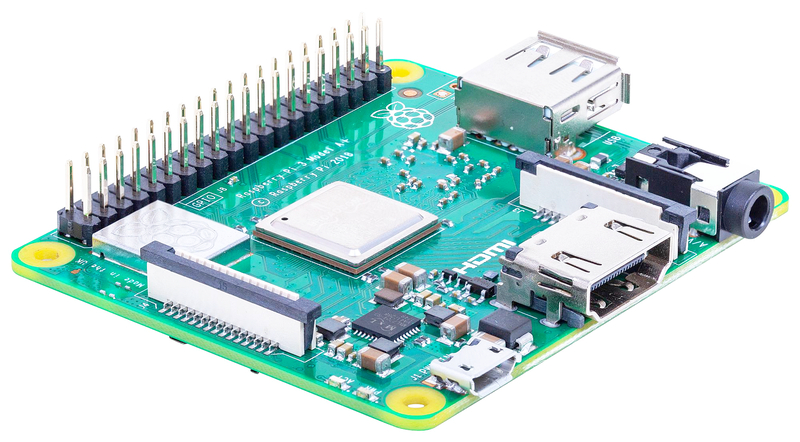

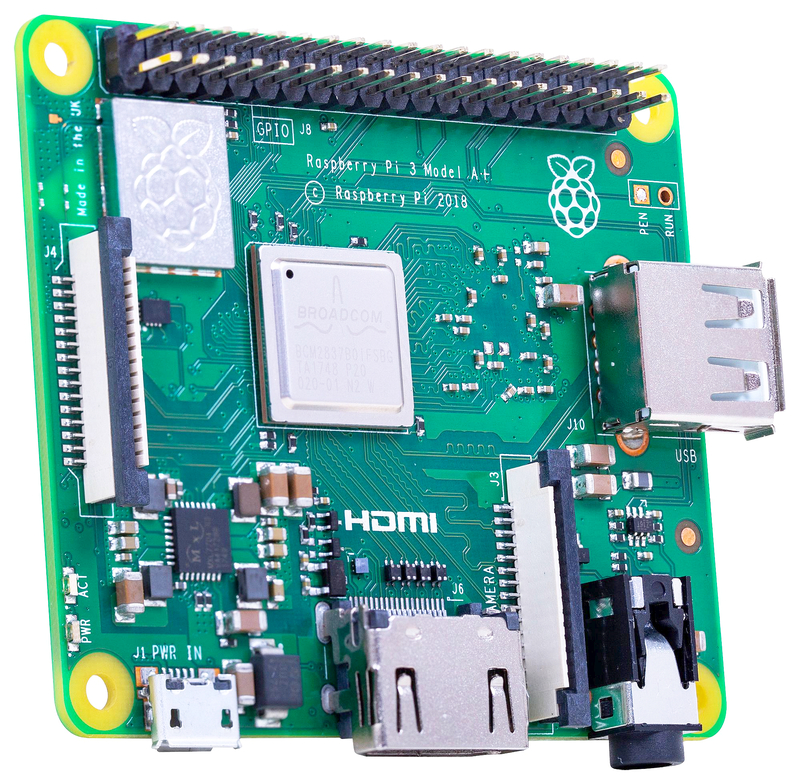

The Raspberry Pi 3 Model A+ is the latest product in the Raspberry Pi 3 range.

Like the Raspberry Pi 3 Model B+, it boasts a 64-bit quad core processor running at 1.4 GHz,

dual-band 2.4 GHz and 5 GHz wireless LAN, and Bluetooth 4.2/BLE.

The dual-band wireless LAN comes with modular compliance certification, allowing the board

to be designed into end products with significantly reduced wireless LAN compliance testing,

improving both cost and time to market.

The Raspberry Pi 3 Model A+ has the same mechanical footprint as the Raspberry Pi 1 Model A+.

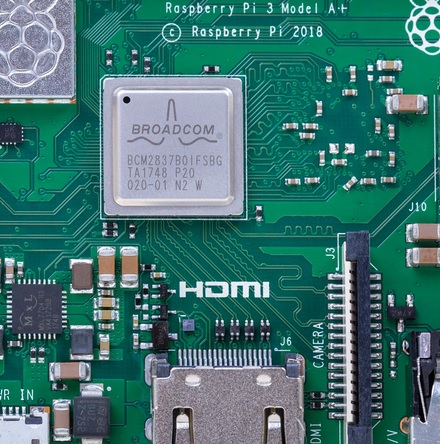

Broadcom BCM2837B0, Cortex-A53 64-bit SoC @ 1.4 GHz
512MB LPDDR2 SDRAM
2.4GHz/5GHz 802.11 b/g/n Wireless LAN
Bluetooth Low Energy 4.2 (BLE)
Full Size HDMI, MIPI DSI Display Port, MIPI CSI Camera Port
4-Pole stereo audio/composite video jack
MicroSD Card for OS and data storage
5V, 2.5A DC power supply via micro USB or GPIO

Applications

Embedded Design & Development, Electronics Design, Hobby & Education, Communications & Networking, Consumer Electronics, IoT (Internet of Things), Industrial

KIT dezvoltare, Raspberry Pi 3 Model A+, Single Board Computer, WiFi, IoT, RPI3-MODAP, RASPBERRY-PI

ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala a produselor. Acest lucru nu schimba caracteristicile lor de baza.
