PEM1312, Power Over Ethernet PD Module, 12.95W, 12V, INFOMART IT SOLUTIONS

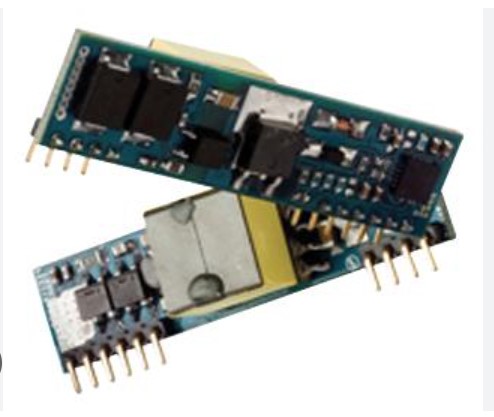

PEM1312

Power Over Ethernet PD Module, 12.95W, 12V

Producător:    INFOMART IT SOLUTIONS

PEM1312 is a power extraction module, have complete compliance with the IEEE 802.3af Power-Over-Ethernet (PoE) standard, and is designed to extract power from CAT5 Ethernet cable when sourced by a IEEE 802.3af compliant Power Sourcing Equipment(PSE). With the increasing demand for Green Power IEEE has emphasized the need for power rightsizing. The PEM1312 series Powered Device (PD) modules provides full PoE signature and programmable power classification for granular power management. Its high efficiency DC/DC converter provides a well regulated low noise and low ripple output with in built overload and output short circuit protection. The PEM1312 provides a quick, easy, and low cost method for Ethernet equipment manufacturers to PoE enable their equipment.



    Fully IEEE 802.3af compliant

    12.95W output load

    IEEE power class programmable (Green)

    1500V DC isolation (Input to Output)

    12V DC output voltage model

    Compact package minimum PCB footprint

    Minimal external components required

    Overload and short circuit protection

    Wide input voltage (36Vdc to 57Vdc)

    Low output ripple and noise, low cost
