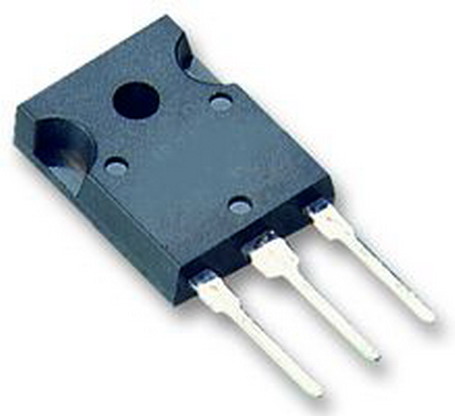

ISL9R1560G2, Dioda, super fast, 15A, 600V, 25ns, TO247, FAIRCHILD

Denumire Produs: ISL9R1560G2 FAIRCHILD

COD: 56248


Preț: 15,90 RON

(Prețul include TVA)
In stoc

FAIRCHILD SEMICONDUCTOR - ISL9R1560G2 - DIODE, FAST, 15A, 600V, TO-247

  •  DIODE, FAST, 15A, 600V, TO-247
  • Diode Type: Fast Recovery
  • Diode Configuration: Single
  • Repetitive Reverse Voltage Vrrm Max: 600V
  • Forward Current If(AV): 15A
  • Forward Voltage VF Max: 2.2V
  • Reverse Recovery Time trr Max: 40ns
  • Forward Surge Current Ifsm Max: 200A
  • Operating Temperature Range: -55°C to +175°C
  • Diode Case Style: TO-247
  • No. of Pins: 2
  • Current Ifrm: 30A
  • Current Ifsm: 200A
  • Forward Voltage: 2.2V
  • Junction Temperature Tj Max: 175°C
  • Package / Case: TO-247
  • Reverse Recovery Time trr Typ: 25ns
  • Termination Type: Through Hole
ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala a produselor. Acest lucru nu schimba caracteristicile lor de baza.
