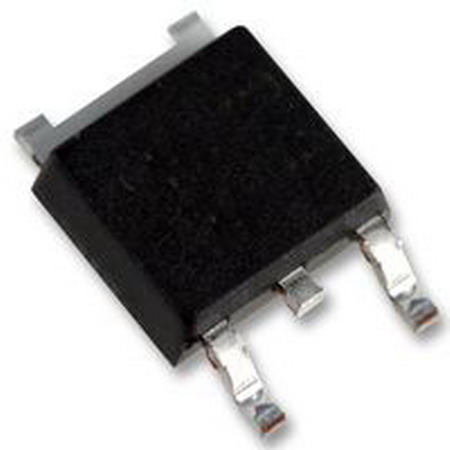

IRLR2905Z, N-MOSFET, LOGIC, 55V, 42A, DPAK, 110W, INFINEON

Descriere

IRLR2905Z Tranzistor: unipolar, N-MOSFET; 55V; 42A; 110W; DPAK

Producator: INTERNATIONAL RECTIFIER

Simbol original: IRLR2905Z

MOSFET, IPS, D-PAK

Transistor Polarity: N Channel

Continuous Drain Current Id: 42A

Drain Source Voltage Vds: 55V

On Resistance Rds(on): 13.5mohm

Rds(on) Test Voltage Vgs: 10V

Threshold Voltage Vgs: 3V

Power Dissipation Pd: 110W

Transistor Case Style: TO-252

No. of Pins: 3

Operating Temperature Max: 175°C

Base Number: 2905

Current Id Max: 42A

Current Idss Max: 250mA

Current Idss Min: 20mA

Junction Temperature Tj Max: 175°C

Junction Temperature Tj Min: -55°C

Operating Temperature Min: -55°C

Operating Temperature Range: -55°C to +175°C

Pulse Current Idm: 240A

Storage Temperature Max: 175°C

Storage Temperature Min: -55°C

Termination Type: SMD

Turn Off Time: 24ns

Turn On Time: 14ns

Voltage Vds: 55V

Voltage Vds Typ: 55V

Voltage Vgs Max: 16V

Voltage Vgs Rds on Measurement: 10V

Voltage Vgs th Max: 3V

ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala.
