Componente electronice activeTranzistoareTranzistoare N-MOSFETIRLR024N, N-MOSFET, 55V, 17A, DPAK, INFINEON
Componente electronice activeTranzistoareTranzistoare N-MOSFETIRLR024N, N-MOSFET, 55V, 17A, DPAK, INFINEON

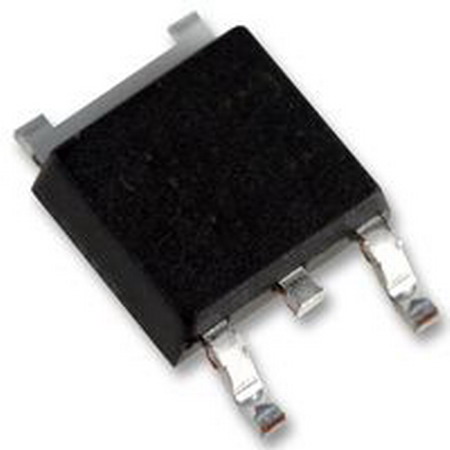

IRLR024N, Tranzistor N-MOSFET LOGL 55V 17A 45W TO252AA RoHS
Producator: INTERNATIONAL RECTIFIER
Simbol original: IRLR024NPBF
Inlocuire pentru: IRLR024N
Manufacturer: Infineon
Product Category: MOSFET
RoHS: Details
Technology: Si
Mounting Style: SMD/SMT
Package/Case: TO-252-3
Number of Channels: 1 Channel
Transistor Polarity: N-Channel
Vds - Drain-Source Breakdown Voltage: 55 V
Id - Continuous Drain Current: 17 A
Rds On - Drain-Source Resistance: 110 mOhms
Vgs th - Gate-Source Threshold Voltage: 2 V
Vgs - Gate-Source Voltage: 16 V
Qg - Gate Charge: 10 nC
Minimum Operating Temperature: - 55 C
Maximum Operating Temperature: + 175 C
Configuration: Single
Channel Mode: Enhancement
Packaging: Tube
Height: 2.3 mm
Length: 6.5 mm
Transistor Type: 1 N-Channel
Type: HEXFET Power MOSFET
Width: 6.22 mm
Brand: Infineon Technologies
Forward Transconductance - Min: 8.3 S
Fall Time: 29 ns
Pd - Power Dissipation: 38 W
Rise Time: 74 ns
Typical Turn-Off Delay Time: 20 ns
Typical Turn-On Delay Time: 7.1 ns
ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala a produselor. Acest lucru nu schimba caracteristicile lor de baza.
