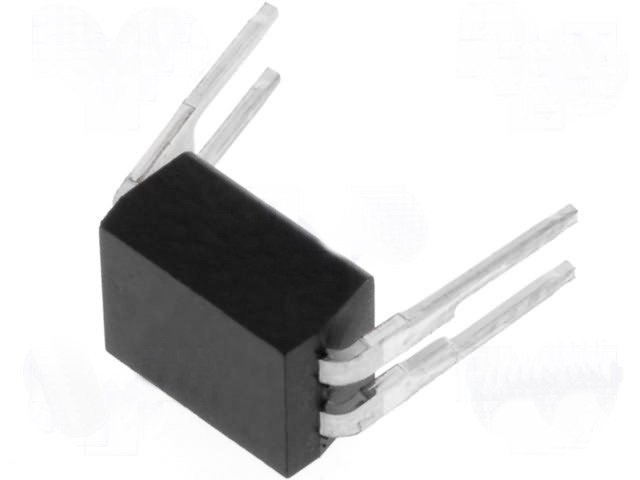

IRLD120PBF Tranzistor N-MOSFET LOGL 100V 1,3A 1,3W DIP4 RoHS
Producator: VISHAY
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 100V
Current - Continuous Drain (Id) @ 25°C 1.3A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 4V, 5V
Rds On (Max) @ Id, Vgs 270mOhm @ 780mA, 5V
Vgs(th) (Max) @ Id 2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 12nC @ 5V
Vgs (Max) ±10V
Input Capacitance (Ciss) (Max) @ Vds 490pF @ 25V
FET Feature -
Power Dissipation (Max) 1.3W (Ta)
Operating Temperature -55°C ~ 175°C (TJ)
Mounting Type Through Hole
Supplier Device Package 4-DIP, Hexdip, HVMDIP
Package / Case 4-DIP (0.300", 7.62mm)
