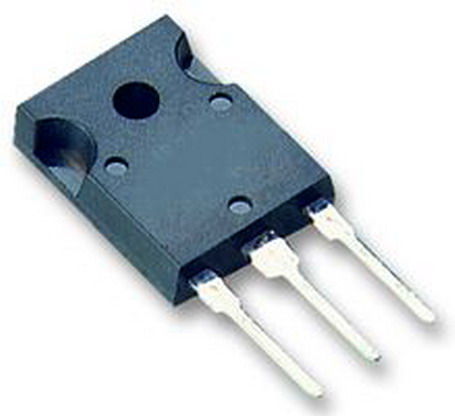

IRFP4332PBF Tranzistor N-MOSFET 250V 57A 360W TO247AC RoHS
Producator: INTERNATIONAL RECTIFIER
Manufacturer: Infineon
Product Category: MOSFET
RoHS: Details
Technology: Si
Mounting Style: Through Hole
Package/Case: TO-247-3
Number of Channels: 1 Channel
Transistor Polarity: N-Channel
Vds - Drain-Source Breakdown Voltage: 250 V
Id - Continuous Drain Current: 57 A
Rds On - Drain-Source Resistance: 33 mOhms
Vgs - Gate-Source Voltage: 30 V
Qg - Gate Charge: 99 nC
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 175 C
Configuration: Single
Pd - Power Dissipation: 360 W
Channel Mode: Enhancement
Packaging: Tube
Height: 20.7 mm
Length: 15.87 mm
Transistor Type: 1 N-Channel
Width: 5.31 mm
Brand: Infineon Technologies
Forward Transconductance - Min: 100 S
Product Type: MOSFET
Subcategory: MOSFETs
