IRFP27N60K, VISHAY

Pagină de start

Componente electronice active

Tranzistoare

Tranzistoare N-MOSFET

IRFP27N60K, N-MOSFET 600V, 27A, VISHAY

Descriere
Recenzii
Etichete
Trimiteti unui prieten
Am găsit o greşeală

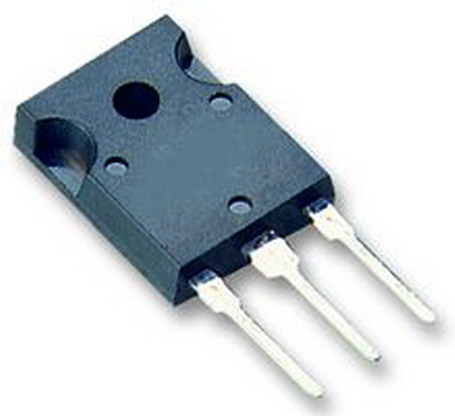

VISHAY FORMERLY I.R. - IRFP27N60KPBF - MOSFET, N, 600V, 27A, TO-247AC

MOSFET, N, 600V, 27A, TO-247AC

Transistor Polarity: N Channel

Continuous Drain Current Id: 27A

Drain Source Voltage Vds: 600V

On Resistance Rds(on): 220mohm

Rds(on) Test Voltage Vgs: 10V

Threshold Voltage Vgs: 5V

Power Dissipation Pd: 500W

Operating Temperature Min: -55°C

Operating Temperature Max: 150°C

Transistor Case Style: TO-247AC

No. of Pins: 3

MSL: -

Current Id Max: 27A

Junction to Case Thermal Resistance A: 0.29°C/W

On State resistance @ Vgs = 10V: 220ohm

Operating Temperature Range: -55°C to +150°C

Pulse Current Idm: 110A

Voltage Vds Typ: 600V

Voltage Vgs Max: 30V

ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala a produselor. Acest lucru nu schimba caracteristicile lor de baza.
