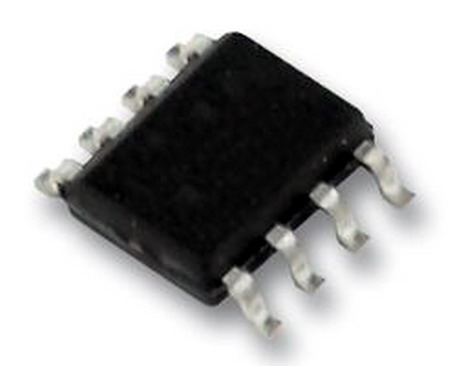

IRF7389, N/P-MOSFET, 30V, 7.3A/5.3A, S08, INFINEON

Denumire Produs: IRF7389T, INFINEON

COD: 48842

Preț orientativ: 14,99 RON

IRF7389PBF Tranzistor: unipolar, N/P-MOSFET, dual; 30V; 7,3A; 2,5W; SO8

  •  MOSFET, DUAL, NP, LOGIC, SO-8
  • Transistor Polarity: N and P Channel
  • Continuous Drain Current Id: 7.3A
  • Drain Source Voltage Vds: 30V
  • On Resistance Rds(on): 46mohm
  • Rds(on) Test Voltage Vgs: 10V
  • Threshold Voltage Vgs Typ: 1V
  • Power Dissipation Pd: 2.5W
  • Transistor Case Style: SOIC
  • No. of Pins: 8
  • Cont Current Id P Channel: 5.3A
  • Current Id Max: 7.3A
  • Current Temperature: 25°C
  • External Depth: 5.2mm
  • External Length / Height: 1.75mm
  • External Width: 4.05mm
  • Full Power Rating Temperature: 25°C
  • Junction Temperature Tj Max: 150°C
  • Junction Temperature Tj Min: -55°C
  • No. of Transistors: 2
  • On State Resistance Max: 29mohm
  • On State Resistance P Channel Max: 58mohm
  • Package / Case: SOIC
  • Power Dissipation P Channel 2: 2.5W
  • Power Dissipation Pd: 2.5W
  • Power Dissipation Pd: 2.5W
  • Pulse Current Idm: 30A
  • Pulse Current Idm P Channel: 30A
  • Row Pitch: 6.3mm
  • SMD Marking: F7389
  • Termination Type: SMD
  • Voltage Vds Typ: 30V
  • Voltage Vgs Max: 1V
  • Voltage Vgs Rds on Measurement: 10V
  • Voltage Vgs th Min: 1V

similar STM8322, AF4502

ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala a produselor. Acest lucru nu schimba caracteristicile lor de baza.
