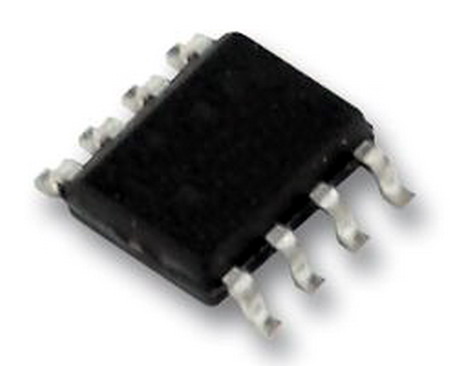

MOSFET, DUAL, PP, LOGIC, SO-8 - Transistor Polarity: P Channel
- Continuous Drain Current Id: 4.3A
- Drain Source Voltage Vds: 20V
- On Resistance Rds(on): 90mohm
- Rds(on) Test Voltage Vgs: -4.5V
- Threshold Voltage Vgs Typ: -700mV
- Power Dissipation Pd: 2W
- Transistor Case Style: SOIC
- No. of Pins: 8
- Current Id Max: -4.3A
- Current Temperature: 25°C
- External Depth: 5.2mm
- External Length / Height: 1.75mm
- External Width: 4.05mm
- Full Power Rating Temperature: 25°C
- No. of Transistors: 2
- Package / Case: SOIC
- Power Dissipation Pd: 2W
- Power Dissipation Pd: 2W
- Pulse Current Idm: 17A
- Row Pitch: 6.3mm
- SMD Marking: IRF7304PBF
- Termination Type: SMD
- Voltage Vds Typ: -20V
- Voltage Vgs Max: -700mV
- Voltage Vgs Rds on Measurement: -4.5V
SIMILAR AO4801
ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala a produselor. Acest lucru nu schimba caracteristicile lor de baza.
