IR2155, Half-Bridge, Gate Driver, INIFNEON

Descriere
Data Sheet
Recenzii
Etichete
Trimiteti unui prieten
Am găsit o greşeală

IR2155PBF Circ. int. autooscilator cu driv.half-brdg. 600V DIP8 RoHS
Producator: INTERNATIONAL RECTIFIER Simbol original: IR2155PBF
Produs similar pentru: IR2155

Driven Configuration Half-Bridge

Channel Type Synchronous

Number of Drivers 2

Gate Type IGBT, N-Channel MOSFET

Voltage - Supply 10V ~ 20V

Logic Voltage - VIL, VIH -

Current - Peak Output (Source, Sink) 250mA, 500mA

Input Type RC Input Circuit

High Side Voltage - Max (Bootstrap) 600V

Rise / Fall Time (Typ) 80ns, 45ns

Operating Temperature -40°C ~ 150°C (TJ)

Mounting Type Through Hole

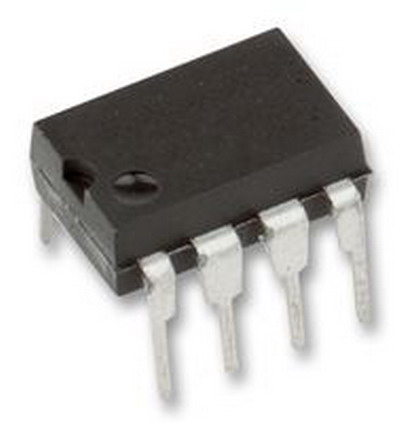

Package / Case 8-DIP (0.300", 7.62mm)

Supplier Device Package 8-PDIP

ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala a produselor. Acest lucru nu schimba caracteristicile lor de baza.
