IR2106S, Dual Driver IC, High Side And Low Side, 10V-20V Supply

Denumire Produs: IR2106STRPBF

COD: 59474

Preț: 24,32 RON

(Prețul include TVA)

Stoc Limitat

Adaugati la lista de favorite

Cantitate:

Discounturile noastre de cantitate:

Cantitate	4+
Preț	19,00 RON

Descriere
Recenzii
Etichete
Trimiteti unui prieten
Am găsit o greşeală

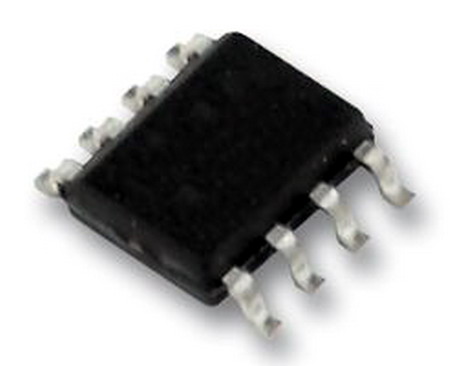

INTERNATIONAL RECTIFIER - IR2106SPBF - DRIVER, MOSFET HIGH/LOW, 2106, SOIC8

DRIVER, MOSFET HIGH/LOW, 2106, SOIC8
Device Type: High Side, Low Side
Module Configuration: High Side / Low Side
Peak Output Current: 350mA
Supply Voltage Min: 10V
Supply Voltage Max: 20V
Driver Case Style: SOIC
No. of Pins: 8
Input Delay: 220ns
Output Delay: 200ns
Operating Temperature Min: -40°C
Operating Temperature Max: 125°C
MSL: MSL 2 - 1 year
Base Number: 2106
IC Generic Number: 2106
Logic Function Number: 2106
No. of Outputs: 2
Offset Voltage: 600V
Operating Temperature Range: -40°C to +125°C
Output Current: 200mA
Output Sink Current Min: 250mA
Output Source Current Min: 120mA
Output Voltage: 620V
Output Voltage Max: 20V
Output Voltage Min: 10V
Package / Case: SOIC
Power Dissipation Pd: 0.625W
Supply Voltage Range: 10V to 20

ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala a produselor. Acest lucru nu schimba caracteristicile lor de baza.
