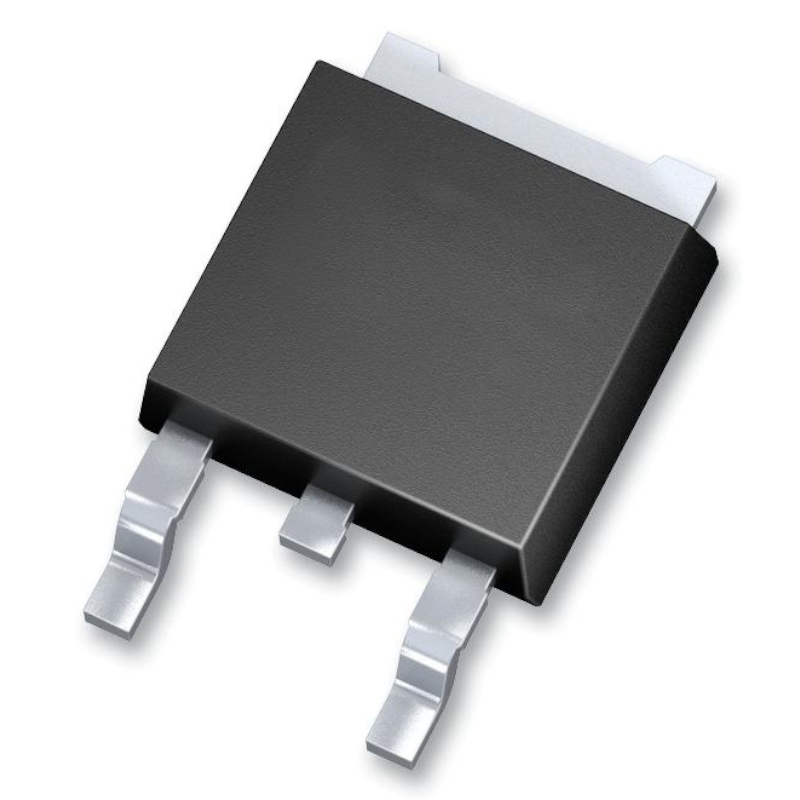

Componente electronice activeTranzistoareTranzistoare P-MOSFETIPD85P04P407, P-MOSFET, 40V, 85A, DPAK, INFINEON
Componente electronice activeTranzistoareTranzistoare P-MOSFETIPD85P04P407, P-MOSFET, 40V, 85A, DPAK, INFINEON
Manufacturer: Infineon
Product Category: MOSFET
RoHS: Details
Technology: Si
Mounting Style: SMD/SMT
Package/Case: TO-252-3
Transistor Polarity: P-Channel
Number of Channels: 1 Channel
Vds - Drain-Source Breakdown Voltage: 40 V
Id - Continuous Drain Current: 85 A
Rds On - Drain-Source Resistance: 5.3 mOhms
Vgs - Gate-Source Voltage: - 20 V, + 20 V
Vgs th - Gate-Source Threshold Voltage: 4 V
Qg - Gate Charge: 89 nC
Minimum Operating Temperature: - 55 C
Maximum Operating Temperature: + 175 C
Pd - Power Dissipation: 88 W
Channel Mode: Enhancement
Qualification: AEC-Q101
Packaging: Cut Tape
Packaging: MouseReel
Packaging: Reel
Configuration: Single
Height: 2.3 mm
Length: 6.5 mm
Series: XPD85P04
Transistor Type: 1 P-Channel
Width: 6.22 mm
Brand: Infineon Technologies
Fall Time: 39 ns
Product Type: MOSFET
Rise Time: 15 ns
Subcategory: MOSFETs
Typical Turn-Off Delay Time: 34 ns
Typical Turn-On Delay Time: 24 ns
