Comutatoare, întrerupătoare, basculanteComutatoare de panou, rotative, apasareIntrerupator push, verde, OFF-ON, 20A, 4 pini, DPST, orificiu montare Ø25mm, R13541BL01BGN2
Comutatoare, întrerupătoare, basculanteComutatoare de panou, rotative, apasareIntrerupator push, verde, OFF-ON, 20A, 4 pini, DPST, orificiu montare Ø25mm, R13541BL01BGN2

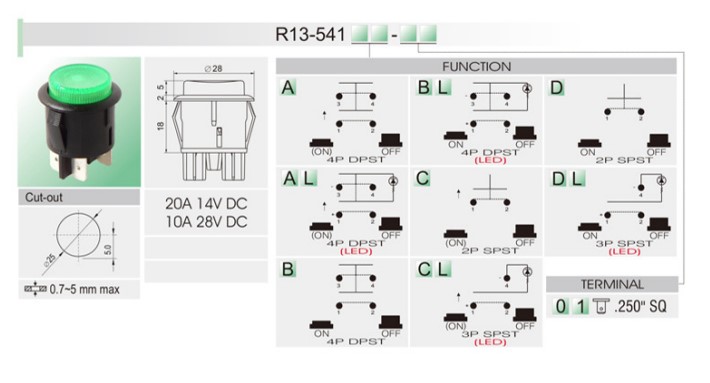

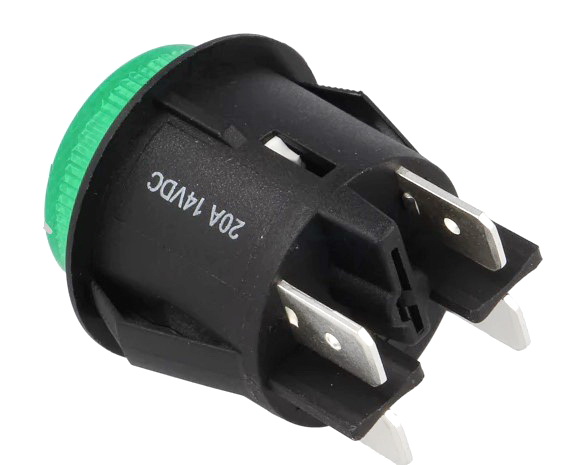

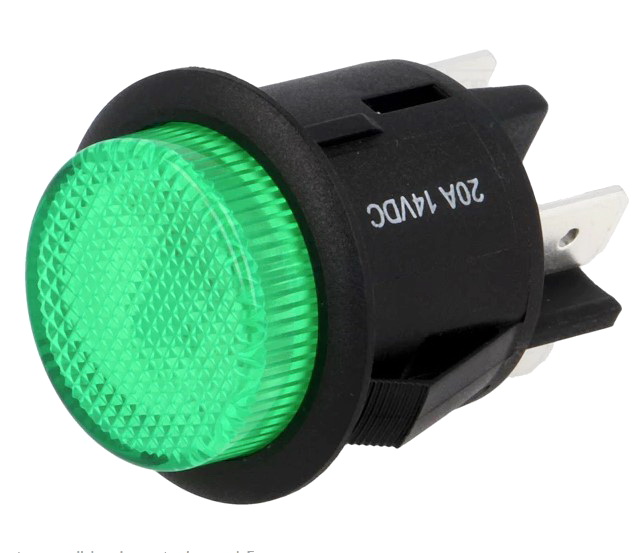

R13541BL01BGN2 Intrerupator cu buton rotund DPST OFF-ON ilum. verde RoHS
Producator: SCI Simbol original: R13-541BL-01-BG
Manufacturer SCI
Type of switch push-button
Number of positions 2
Contacts configuration DPST-NO
DC contacts rating @R , (at resistive load), 20A / 12V DC
Switching method (the positon in bracket indicates momentary position.) OFF-ON
Illumination LED
Backlight colour green
Illumination voltage 12V DC
Leads connectors 6,35mm
Operating temperature -25...70°C
Max. contact resistance: 50mΩ
Button shape prominent, round
Mounting hole diameter Ø25mm
Body material polyamide
AC test voltage 1.5kV
Actuator colour green
Panel thickness max. 3mm
Mounting on panel
Body dimensions Ø26x27mm
Flammability rating UL94V-2
Terminals plating silver plated
Manufacturer series R13-541
Stable positions number 2
