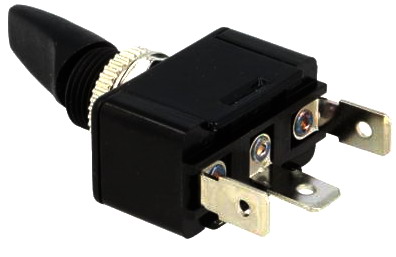

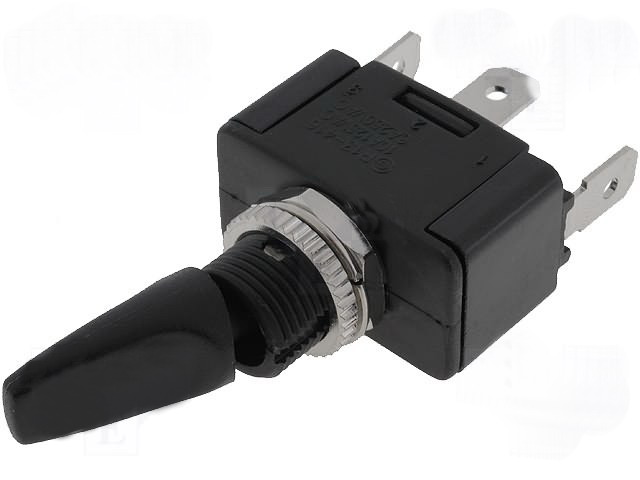

Intrerupator:basculant; Config.pini:SPDT; 6A/250V; 50mΩ; UL94V-2
Producator: SCI

Tip intrerupator basculant
Clasa inflamabilitate UL94V-2
Mod comutare ON-OFF-ON
Configuratie pini SPDT
Sarcina admisibila contacte AC* 6 A / 250 V
Rezistenta contact max. 50 mΩ
Material carcasa poliamida
Culoare maneta neagra

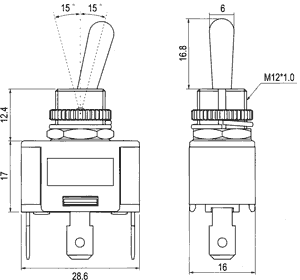

Dimensiuni carcasa 28,6 x 16 x 17 mm
Diametru orificiu de montaj 12,2 mm
Grosime panou max 5 mm
Placare terminale nichelate

 *la sarcina rezistiva

c)

SPST : single pole single throw
SPDT : single pole double throw
DPST : double pole single throw
DPDT : double pole double throw


For multipole switches:
3P : 3 pole
   3PST means 3 pole single throw
4P : 4 pole
   4PDT means 4 pole double throw


Contacts position:
NO : normally open contacts are operated to "make"
NC : normally closed contacts are operated to "break"


For switches with 3 stable positions:
SP3T : single pole ON-OFF-ON
DP3T : double pole ON-OFF-ON
Momentary action: the state of the switch will change only whilst the operating force is applied. When released the switch will return to its original state
