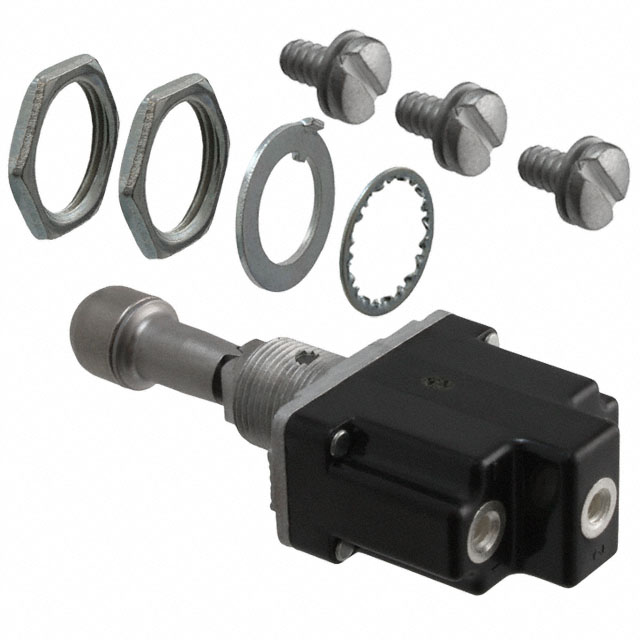

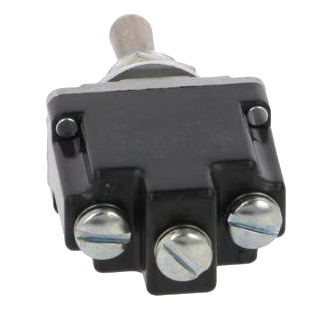

Comutatoare, întrerupătoare, basculanteComutatoare basculante de panou, tip rokerIntrerupator basculant, (ON)-OFF-(ON), 20A, SPDT, MILITARY GRADE, 1TL1-7, orificiu montare Ø12.4mm, Honeywell
Comutatoare, întrerupătoare, basculanteComutatoare basculante de panou, tip rokerIntrerupator basculant, (ON)-OFF-(ON), 20A, SPDT, MILITARY GRADE, 1TL1-7, orificiu montare Ø12.4mm, Honeywell
1TL1-7
Manufacturer: Honeywell
Description: Toggle Switches SPDT (ON)-OFF-(ON) Screw Term
Manufacturer: Honeywell
Product Category: Toggle Switches
RoHS: RoHS Compliant Details
Contact Form: SPDT
Current Rating: 20 A
Voltage Rating AC: 277 V
Voltage Rating DC: 250 V
Termination Style: Screw
Mounting Style: Panel
Bushing Size: 15/32-32
Terminal Seal: Sealed
Contact Plating: Silver Cadmium Oxide
Actuator: Paddle
Brand: Honeywell
Mounting Type: Bushing
Part # Aliases: MS24523-27
SP3T Contact configuration
Qualified to MIL-DTL-3950
Environment-proof sealing
Completely sealed switching chamber
Step-design case provides added space between terminals to help prevent shorting
UL recognized, CSA certified
