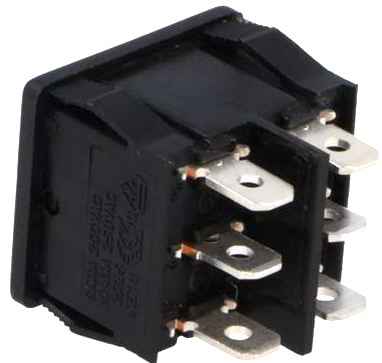

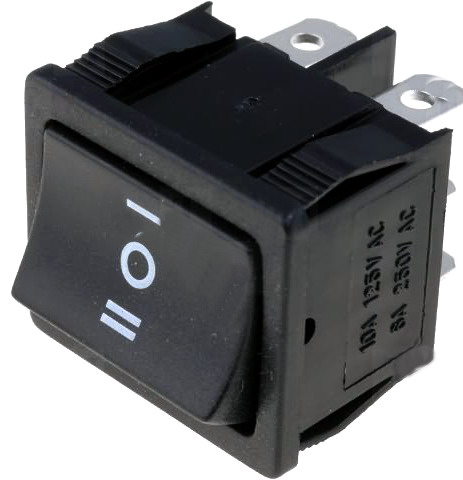

RS1333DBB7 Intrerupator Rocker DP3T ON-OFF-ON 6A, 250V CA RoHS

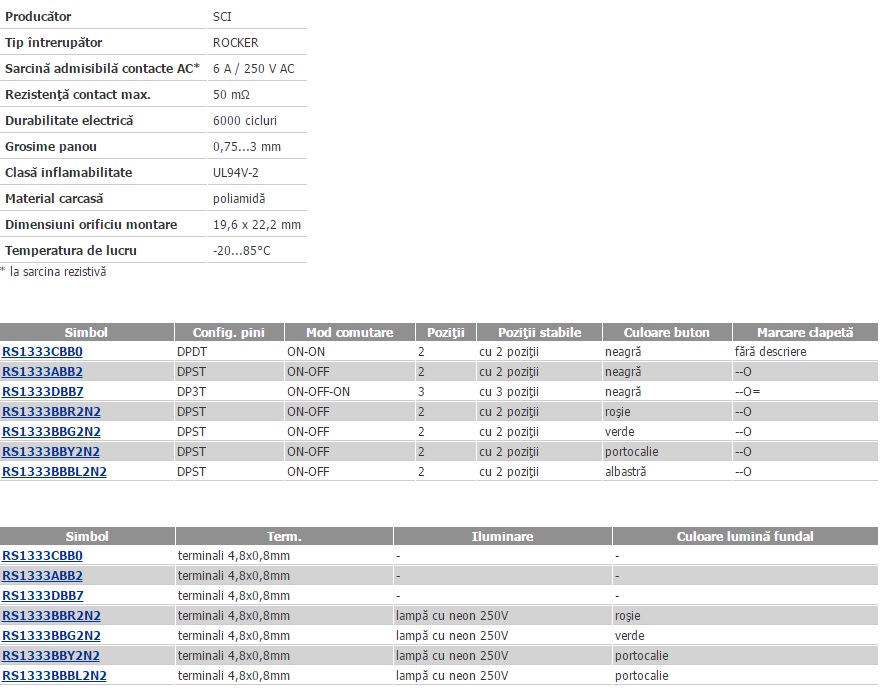

Producator: SCI

Simbol original: R13-33D-02-BB-7D

Tip intrerupator ROCKER
Durabilitate electrica 6000 cicluri
Clasa inflamabilitate UL94V-2
Terminale conectori 4,8 mm
Sarcina admisibila contacte AC* 6 A / 250 V
Rezistenta contact max. 50 mΩ
Material carcasa poliamida

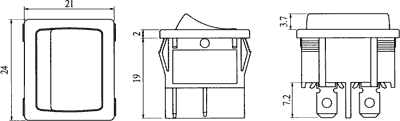

Dimensiuni orificiu montare 19,6 x 22,2 mm
Grosime panou 0,75...3 mm

 *la sarcina rezistiva

SPST : single pole single throw
SPDT : single pole double throw
DPST : double pole single throw
DPDT : double pole double throw


For multipole switches:
3P : 3 pole
   3PST means 3 pole single throw
4P : 4 pole
   4PDT means 4 pole double throw


Contacts position:
NO : normally open contacts are operated to "make"
NC : normally closed contacts are operated to "break"


For switches with 3 stable positions:
SP3T : single pole ON-OFF-ON
DP3T : double pole ON-OFF-ON
Momentary action: the state of the switch will change only whilst the operating force is applied. When released the switch will return to its original state
