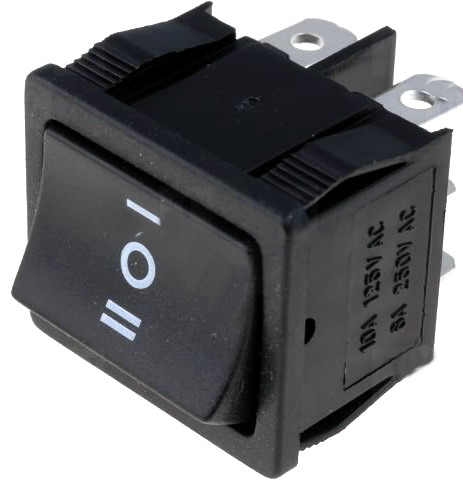

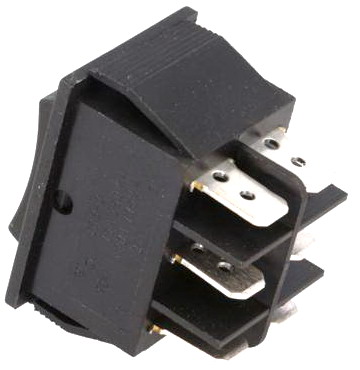

RS2032C0BK Intrerupator Rocker DP3T ON-OFF-ON 15A 250V negru  RoHS
Producator: NINIGI

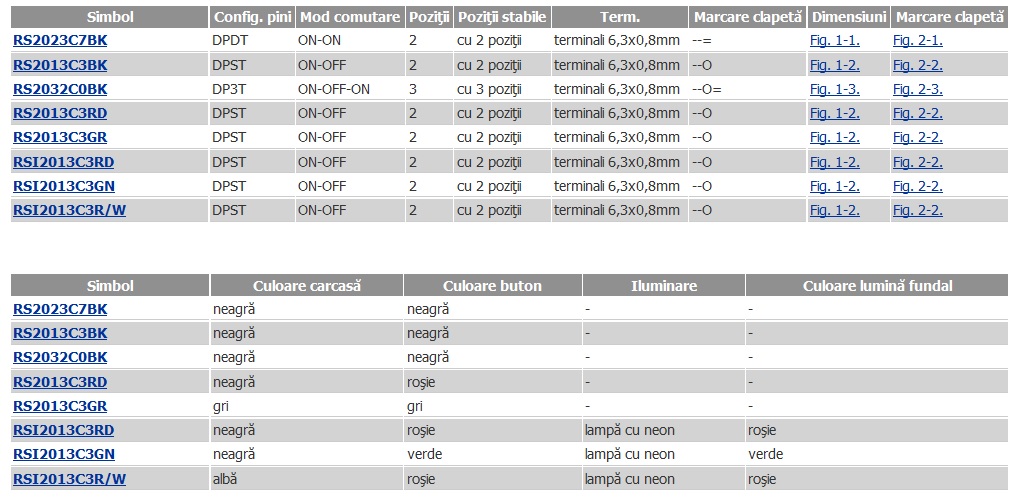

Simbol original: RS2032C0BK

Tip intrerupator ROCKER

Temperatura de lucru -30...80C
Terminale conectori 6,3 x 0,8 mm
Rezistenta contact max. 35 mΩ
Sarcina admisibila contacte AC* 15 A / 250 V
Inaltime deasupra panoului 9,4 mm
Durabilitate electrica 10000 cicluri
Dimensiuni orificiu montare 22,3 x 31 mm

 *la sarcina rezistiva

SPST : single pole single throw
SPDT : single pole double throw
DPST : double pole single throw
DPDT : double pole double throw


For multipole switches:
3P : 3 pole
   3PST means 3 pole single throw
4P : 4 pole
   4PDT means 4 pole double throw


Contacts position:
NO : normally open contacts are operated to "make"
NC : normally closed contacts are operated to "break"


For switches with 3 stable positions:
SP3T : single pole ON-OFF-ON
DP3T : double pole ON-OFF-ON
Momentary action: the state of the switch will change only whilst the operating force is applied. When released the switch will return to its original state
