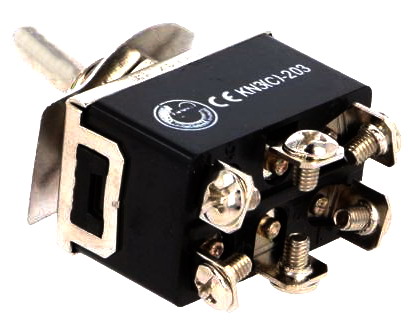

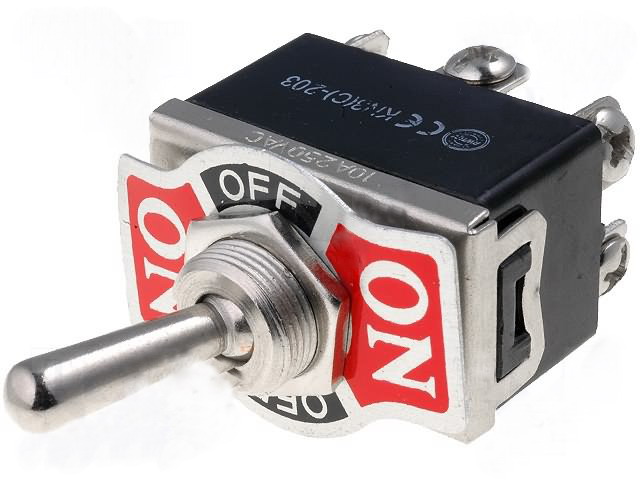

TSP203AA3 Intrerupator basculant DP3T ON-OFF-ON 10A

Tip intrerupator basculant
Temperatura de lucru -55...65C
Durabilitate electrica 20000 cicluri
Terminale suruburi M3
Sarcina admisibila contacte AC* 10 A / 250 V
Rezistenta contact max. 50 mΩ
Inaltime maneta 17,5 mm
Diametru orificiu de montaj 12,2 mm

 *la sarcina rezistiva

Simbol   Mod comutare Config.pini Dim. carcasa
                                                     [mm]
TSP101AA1     ON-OFF SPST         29 x 15,8 x 19
TSP102AA2    ON-ON SPDT           29 x 15,8 x 19
TSP103AA3    ON-OFF-ON SP3T     29 x 15,8 x 19
TSP101AAA1  ON-OFF SPST           29 x 15,8 x 19
TSP201AA1    ON-OFF DPST          32,2 x 19,8 x 19
TSP202AA2    ON-ON DPDT           32,2 x 19,8 x 19
TSP203AA3    ON-OFF-ON DP3T     32,2 x 19,8 x 19
TSP201AAA1  ON-OFF DPST           32,2 x 19,8 x 19

SPST : single pole single throw
SPDT : single pole double throw
DPST : double pole single throw
DPDT : double pole double throw


For multipole switches:
3P : 3 pole
   3PST means 3 pole single throw
4P : 4 pole
   4PDT means 4 pole double throw


Contacts position:
NO : normally open contacts are operated to "make"
NC : normally closed contacts are operated to "break"


For switches with 3 stable positions:
SP3T : single pole ON-OFF-ON
DP3T : double pole ON-OFF-ON
Momentary action: the state of the switch will change only whilst the operating force is applied. When released the switch will return to its original state
