Comutatoare, întrerupătoare, basculanteComutatoare basculante de panou, tip rokerIntrerupator basculant, ON-OFF-ON, 10A, 6 pini, orificiu montare Ø12.2mm, DP3T TS-19

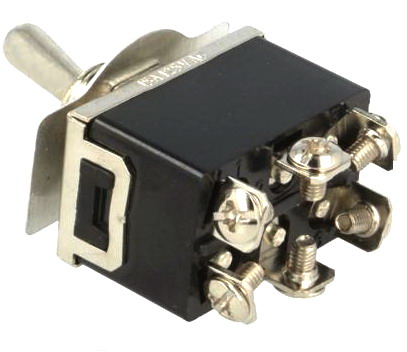

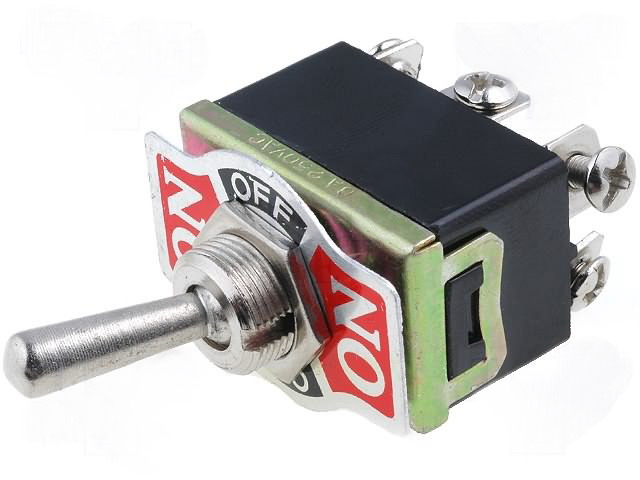

TS-19 Intrerupator basculant DP3T ON-OFF-ON 10A 6pin
lever and bush LxBxH: 29x19x19 mm
ever length: 17 mm
mounting bush M12
contacts rating: 10 A / 250 V AC
SPST : single pole single throw
SPDT : single pole double throw
DPST : double pole single throw
DPDT : double pole double throw
For multipole switches:
3P : 3 pole
3PST means 3 pole single throw
4P : 4 pole
4PDT means 4 pole double throw
Contacts position:
NO : normally open contacts are operated to "make"
NC : normally closed contacts are operated to "break"
For switches with 3 stable positions:
SP3T : single pole ON-OFF-ON
DP3T : double pole ON-OFF-ON
Momentary action: the state of the switch will change only whilst the operating force is applied. When released the switch will return to its original state
ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala a produselor. Acest lucru nu schimba caracteristicile lor de baza.
