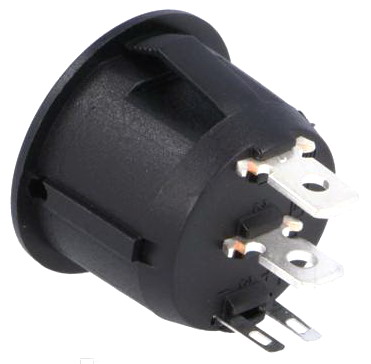

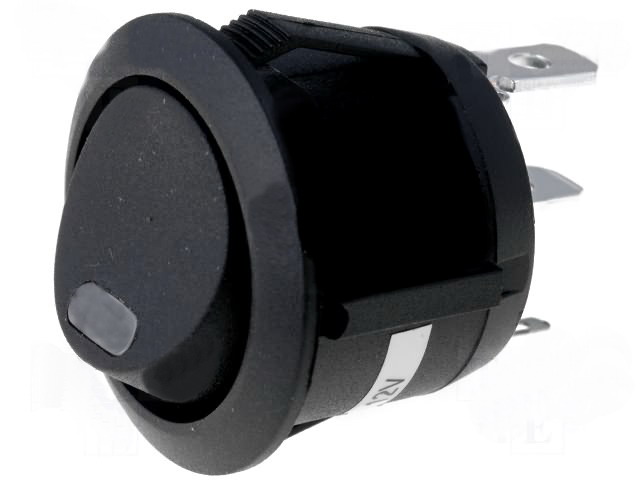

R13112L02BBR0L3 Intrerupator Rocker SPST ON-OFF rotund LED rosu RoHS
Producator: SCI


Available versions with neon  (230 V / 150 kW) or red LED
(12 V DC) illumination.
In the R13112L02BBR0L3 and R13112LP02BR0L3 switches the LED supply contacts are saparated (12 V DC

SPST : single pole single throw
SPDT : single pole double throw
DPST : double pole single throw
DPDT : double pole double throw


For multipole switches:
3P : 3 pole
   3PST means 3 pole single throw
4P : 4 pole
   4PDT means 4 pole double throw


Contacts position:
NO : normally open contacts are operated to "make"
NC : normally closed contacts are operated to "break"


For switches with 3 stable positions:
SP3T : single pole ON-OFF-ON
DP3T : double pole ON-OFF-ON
Momentary action: the state of the switch will change only whilst the operating force is applied. When released the switch will return to its original state
