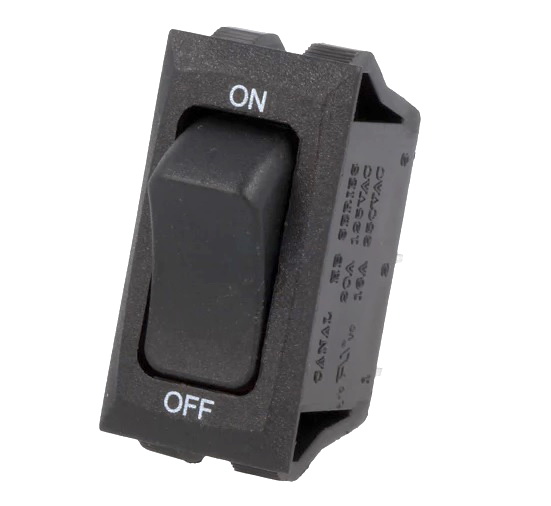

Intrerupator basculant, ON-OFF, 16A, 2 pini, SPST, orificiu montare 28.6x13.8mm, HB110C7NBBRA

HB110C7NBBRA Intrerupator Rocker SPST ON-OFF 16A negru-rosu

Tip intrerupator ROCKER
Temperatura de lucru -20...125C
Durabilitate electrica 10000 cicluri
Clasa inflamabilitate UL94V-2

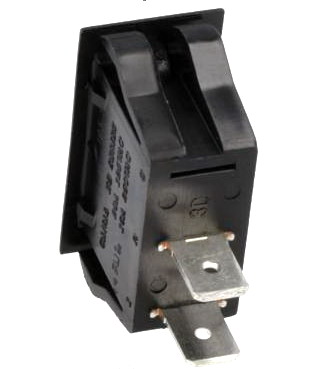

Terminale conectori 6,3 x 0,8 mm
Configuratie pini SPST
Mod comutare ON-OFF
Sarcina admisibila contacte AC* 16 A / 250 V
Rezistenta contact max. 20 mΩ
Material pin aliaj argint
Material terminale aliaj cupru
Material carcasa poliamida

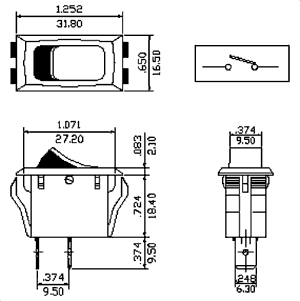

Dimensiuni carcasa 27,2 x 13,8 x 18,4 mm
Dimensiuni orificiu montare 28,6 x 13,8 mm
Inaltime deasupra panoului 8 mm
Placare terminale argintate
Rezistenta izolatie min. 100 MΩ

SPST : single pole single throw
SPDT : single pole double throw
DPST : double pole single throw
DPDT : double pole double throw


For multipole switches:
3P : 3 pole
   3PST means 3 pole single throw
4P : 4 pole
   4PDT means 4 pole double throw


Contacts position:
NO : normally open contacts are operated to "make"
NC : normally closed contacts are operated to "break"


For switches with 3 stable positions:
SP3T : single pole ON-OFF-ON
DP3T : double pole ON-OFF-ON
Momentary action: the state of the switch will change only whilst the operating force is applied. When released the switch will return to its original state
