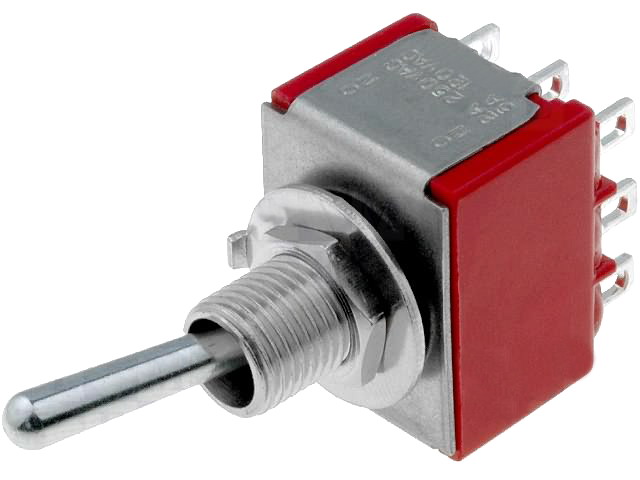

Intrerupator basculant, (ON)-OFF-(ON), 12pini, 5A, 4PDT, 1M44T1B5M1QE

Descriere
Recenzii
Etichete
Trimiteti unui prieten
Am găsit o greşeală

MULTICOMP - 1M44T1B5M1QE - SWITCH, SOLDER TAG, 4PDT, MOM-OFF-MOM

SWITCH, SOLDER TAG, 4PDT, MOM-OFF-MOM
Contact Configuration: 4PDT
Switch Operation: (On)-Off-(On)
Contact Voltage AC Nom: 120V
Contact Voltage DC Nom: 28V
Contact Current Max: 5A
Switch Terminals: Solder
Actuator Style: Bat
Switch Mounting: Panel
Actuation Type: Bat
Approval Category: UL Recognised
Bush Thread Length: 8.89mm
Contact Configuration: 4PDT
Contact Current AC: 2A
Contact Current AC Max: 5A
Contact Current DC Max: 5A
Contact Current Max: 5A
Contact Material: Copper Alloy
Contact Plating: Silver
Contact Resistance: 10mohm
Contact Resistance Max: 100mohm
Contact Voltage AC Max: 250VAC
Contact Voltage AC Nom: 120V
Contact Voltage DC Max: 28VDC
Contact Voltage DC Nom: 28V
External Depth: 21.59mm
External Length / Height: 14.48mm
External Width: 12.7mm
Flammability Rating: UL94V-0
Insulation Resistance: 1000Mohm
Lever Length: 10.41mm
Material: DAP
No. of Mechanical Operations: 40000
No. of Poles: 4
Operating Temperature Max: 85°C
Operating Temperature Min: -30°C

ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala a produselor. Acest lucru nu schimba caracteristicile lor de baza.
