Comutatoare, întrerupătoare, basculanteComutatoare basculante de panou, tip rokerIntrerupator basculant auto, ON-OFF, 25A, 3 pini, SPST,orificiu montare Ø24mm, R13203L01BBRL1

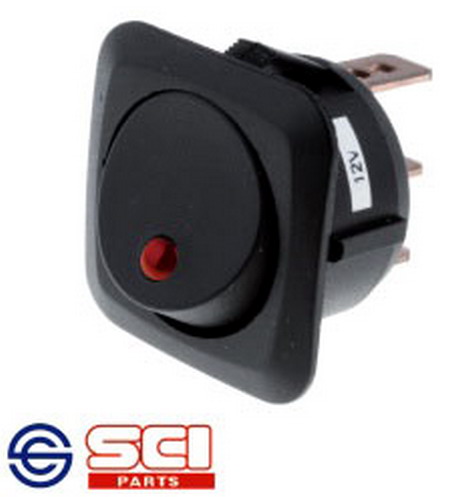

R13203L01BBRL1 Intrerupator Rocker auto SPST ON-OFF 25A rosu RoHS

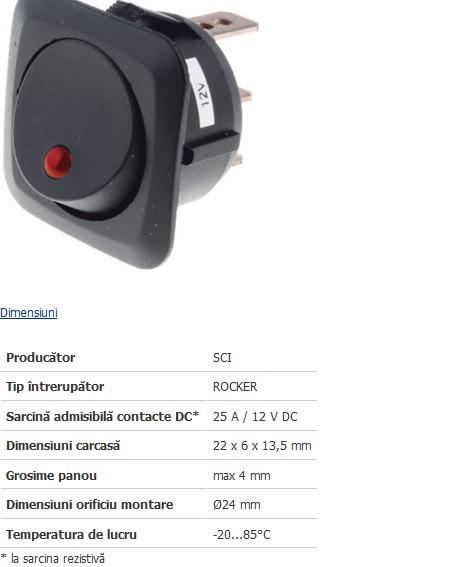

Producator: SCI
Tip intrerupator ROCKER

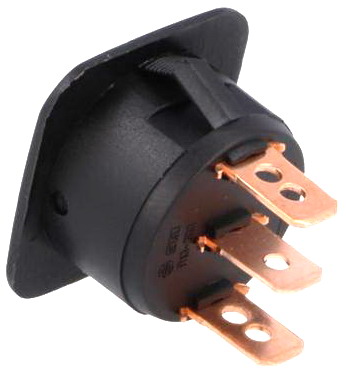

Terminale conectori 6,3 x 0,8 mm
Configuratie pini SPST
Mod comutare ON-OFF
Sarcina admisibila contacte DC* 25 A / 12 V
Dimensiuni carcasa 22 x 6 x 13,5 mm
Dimensiuni orificiu montare Ø24 mm
Grosime panou max 4 mm
Culoare buton neagra
Iluminare LED
Culoare lumina de fundal rosie
*la sarcina rezistiva
SPST : single pole single throw
SPDT : single pole double throw
DPST : double pole single throw
DPDT : double pole double throw
For multipole switches:
3P : 3 pole
3PST means 3 pole single throw
4P : 4 pole
4PDT means 4 pole double throw
Contacts position:
NO : normally open contacts are operated to "make"
NC : normally closed contacts are operated to "break"
For switches with 3 stable positions:
SP3T : single pole ON-OFF-ON
DP3T : double pole ON-OFF-ON
Momentary action: the state of the switch will change only whilst the operating force is applied. When released the switch will return to its original state
ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala a produselor. Acest lucru nu schimba caracteristicile lor de baza.
